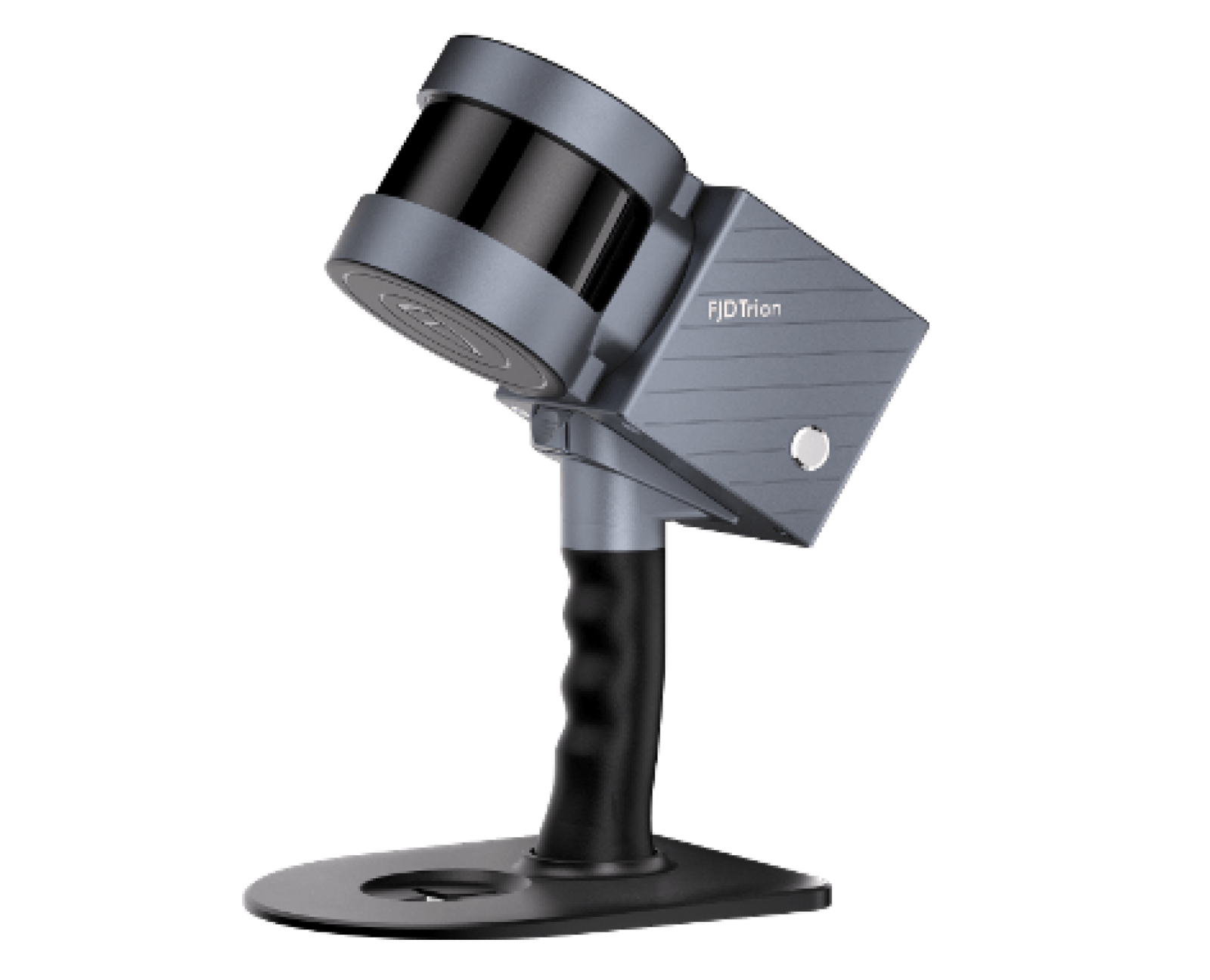

FJD Trion S1
owered by a leading SLAM algorithm, the S1 builds your reality as you scan. Capture indoor and outdoor environments as you walk, and view real-time point clouds on your mobile device. See your surroundings come to life with every step, so you don't miss any details.

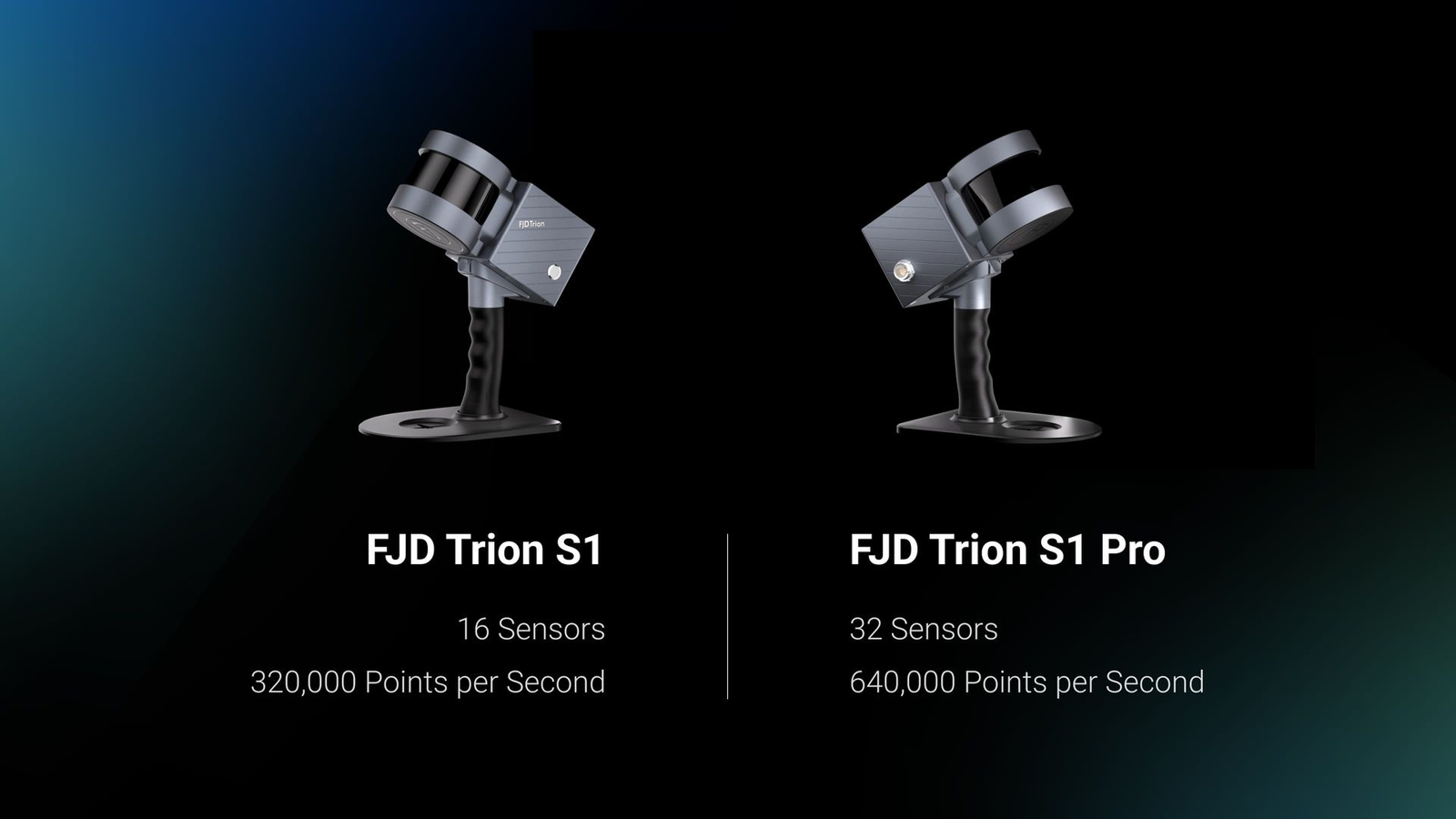

Elevate your scanning capabilities with FJD Trion S1 Pro, an advanced version of S1. Building upon the lightweight and portable design of S1, the S1 Pro delivers even greater accuracy and efficiency with its upgraded hardware.
- AVAILABILITY: AVAILABLE
- Inquire Now
S1 Specifications
| Range | 120 m @ 90% reflectivity / 80 m @ 10% reflectivity |
|---|---|
| Sensors | 16 / 32 (S1 Pro) |
| Laser Class | Class 1 / λ 905 nm |
| Vertical Angular Resolution | 2° |
| FOV | 360° × 270° |
| Horizontal Angular Resolution | 0.36° |
| IP Rating | IP54 |
| Relative Accuracy | 2 cm |
| Processing | Real-Time |
| Carrier | Handheld, Backpack or Shoulder Strap |
| Datalogger Weight | 2.2 kg |
| Battery Life (Dual Batteries) | 4 h |
| Scanner Weight | 1.8 kg |
| Storage Capacity | 512 GB |
| Points Per Second | 320,000 / 640,000 (S1 Pro) |

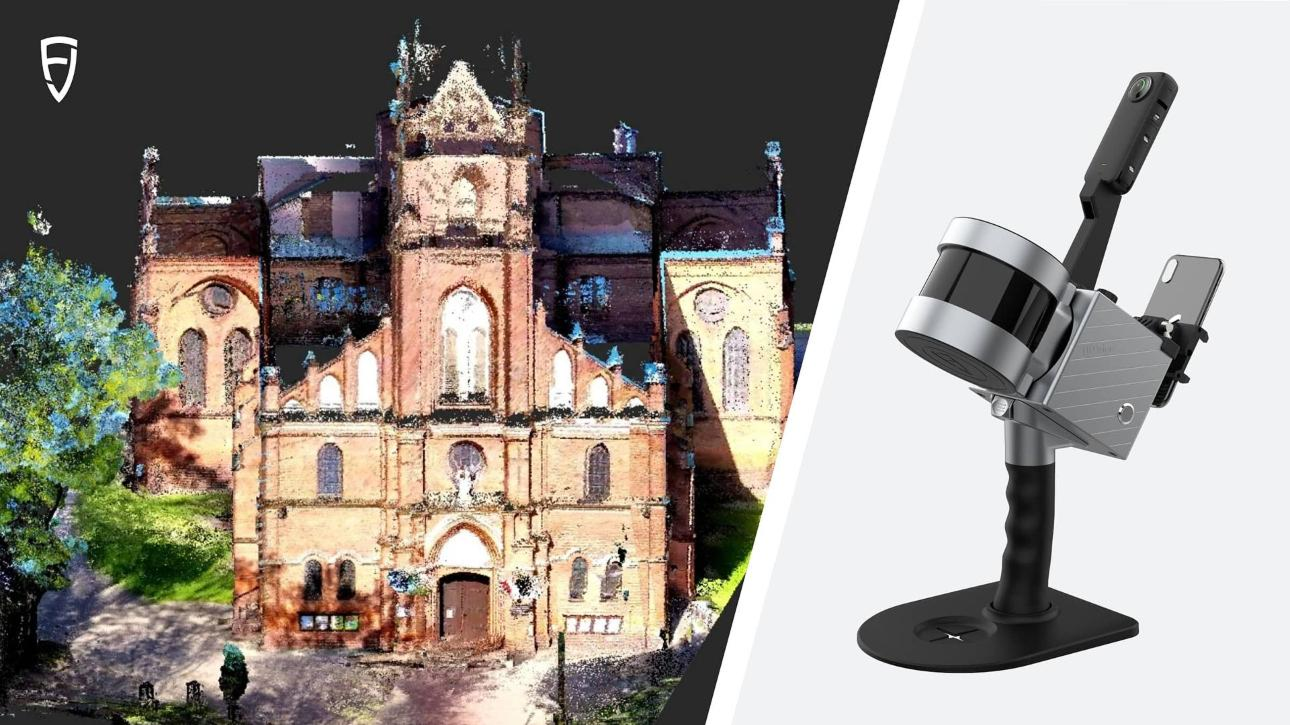

Camera Specifications
| Camera Type | 360° Panoramic Lens |
|---|---|
| FOV | 360° |
| Data Format | insv |
| Photo Resolution | 72 million pixels (11968×5984) / 18 million pixels (5952×2976) |
| Video Resolution | 5.7K: 5760×2880 @ 30fps |
| Dimension | 46.0 × 114.0 × 33.1 mm |
| Storage Capacity | 128 GB (Maximum Expansion IT) |
| Weight | 180 g |
| Power Supply | S1 / Camera Battery |
| Working Temperature | -20℃ ~ 40℃ |
FJD Trion V1t RTK Rover Specifications
| Satellite Constellation Supported | GPS, BDS-2, BDS-3, GLONASS, Galileo, QZSS, SBAS, IRNSS |
|---|---|
| Channels | 965 |
| RTK Format | GGA, ZDA |
| RTK Frequency | 1–10 Hz |
| Communication | RS232 |

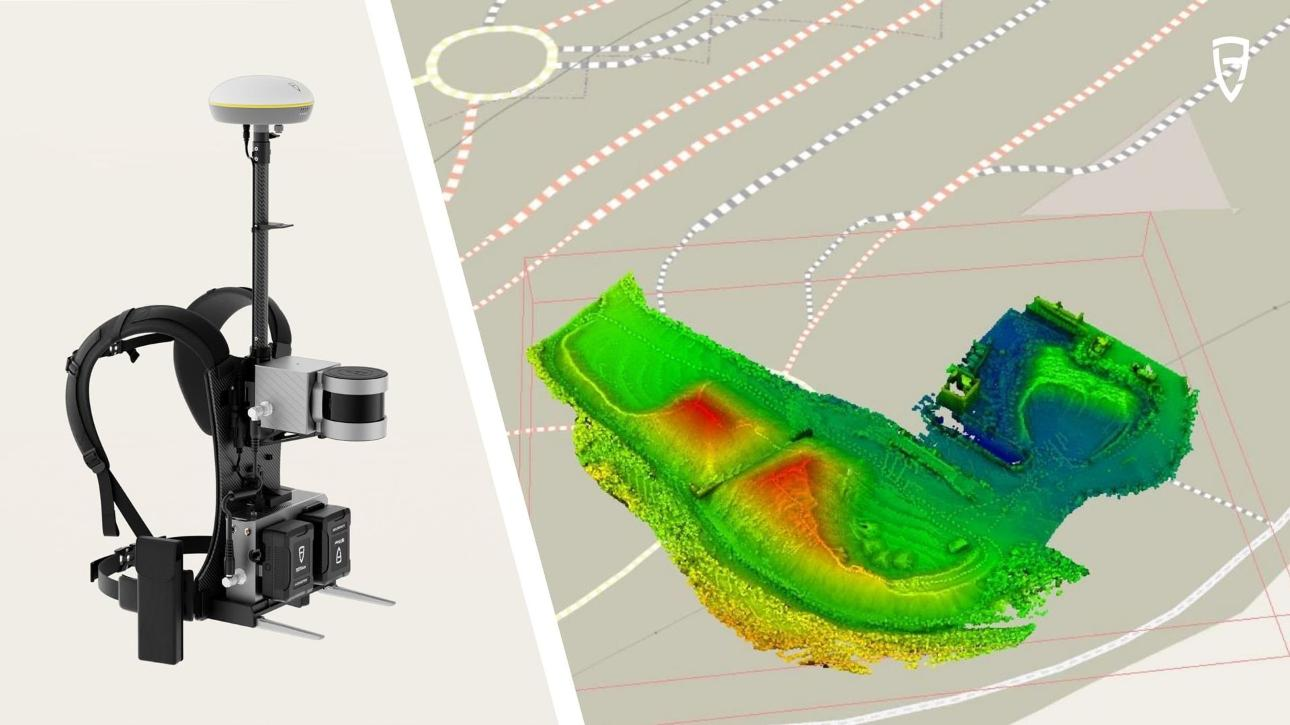

| Backpack Weight | 8.2 kg (Including S1 and V1t RTK Rover) |
| Dimensions | 310 × 240 × 810 mm |
