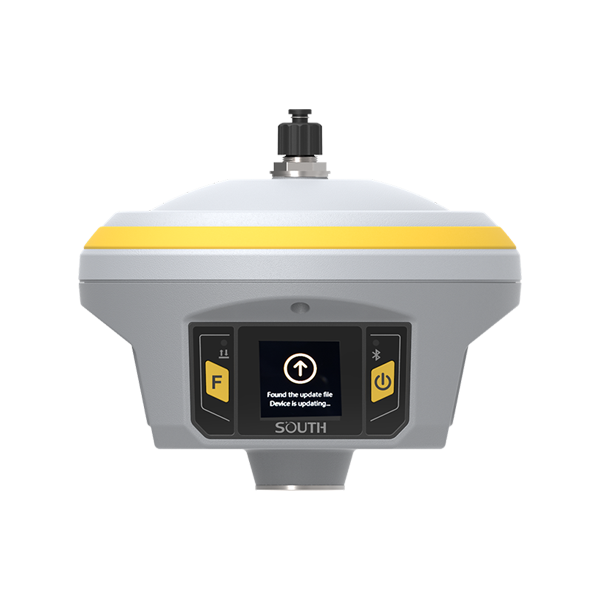

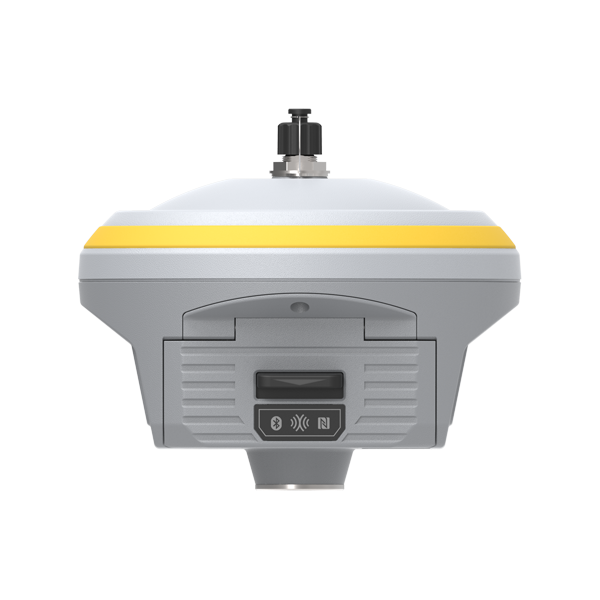

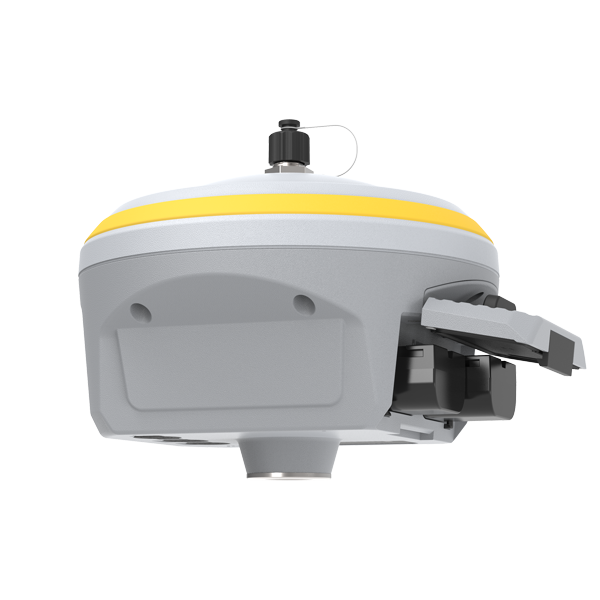

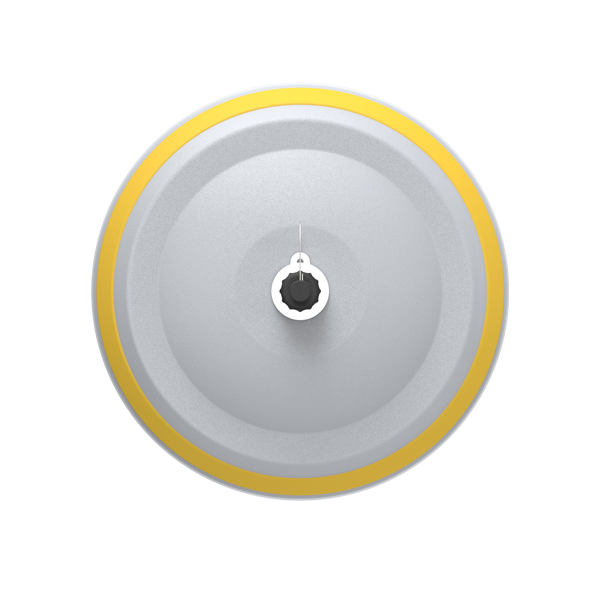

Inno 7
INNO7 is equipped with a high speed network full netcom module, which supports the latest communication network and gives the RTKs high speed information interaction and wider expansion space in the big data era. Based on intelligent PPP dial up technology, INNO7 realizes automatic dialing in real-time and keeps online during working.
INNO7 adopts an internal radio with 3W maximum transmission power to achieve the typical working range as 15km through “Far-link” protocol. The transmission bandwidth becomes large, which perfectly solves the problem of large data volume of multiple constellations transmission. And the power consumption can reduce about 60% in the same amount of data transmission compare to the traditional RTK.
- AVAILABILITY: AVAILABLE
- Inquire Now
| Channels | 336, 1598 (optional) |
|---|---|
| GPS | L1C/A, L1C, L2C, L2E, L5 |
| GLONASS | L1C/A, L1P, L2C/A, L2P, L3 |
| BDS | B1, B2, B3 |
| GALILEO | E1, E5A, E5B, E5AltBOC, E6 |
| SBAS | L1C/A, L5 (Just for the satellites supporting L5) |
| IRNSS | L5 |
| QZSS | L1C/A, L1 SAIF, L2C, L5, LEX |
| MSS L-Band | Trimble RTX[1] |
| Positioning output rate | 1Hz~50Hz |
| Initialization time | < 10s |
| Initialization reliability | >99.99% |
| Code differential GNSS positioning | Horizontal: 0.25 m + 1 ppm RMS Vertical: 0.50 m + 1 ppm RMS |
| GNSS static | Horizontal: 2.5 mm + 0.5 ppm RMS Vertical: 5 mm + 0.5 ppm RMS |
| Long Observation Static | Horizontal: 3mm+0.1 ppm Vertical: 3.5mm+0.4ppm |
| Real-time kinematic | Horizontal: 8 mm + 1 ppm RMS (Baseline<30km) Vertical: 15 mm + 1 ppm RMS |
| SLink (RTX)[2] | Horizontal: 4-10 cm Vertical: 8-20 cm |
| RTK XTRa (xFill)[3] | Horizontal: 5 + 10 mm/min RMS Vertical: 5 + 20 mm/min RMS |
| SBAS positioning | Typically<5m 3DRMS |
| RTK initialization time | 2~8s |
| IMU tilt | 0°~60° |
| Dimension | 15.3cm(φ)×10.6cm(H) |
| Weight | 1.2kg (battery included) |
| Material | Magnesium aluminum alloy shell |
| Operating temperature | –25 °C to +65 °C |
| Storage temperature | –35 °C to +80 °C |
| Humidity | 100% Non-condensing |
| Waterproof/Dustproof | IP68 standard, protected from long time immersion to depth of 1m IP68 standard, fully protected against blowing dust |
| Shock/Vibration | Withstand 2 meters pole drop onto the cement ground naturally |
| Power consumption | 3W |
| Power supply | 6-28V DC, overvoltage protection |
| Battery | 7.4 V 3400mAh×2 rechargeable, removable Lithium-ion battery |
| Battery life* | 16h (static mode) 10h (internal UHF base mode) 12h (rover mode) |

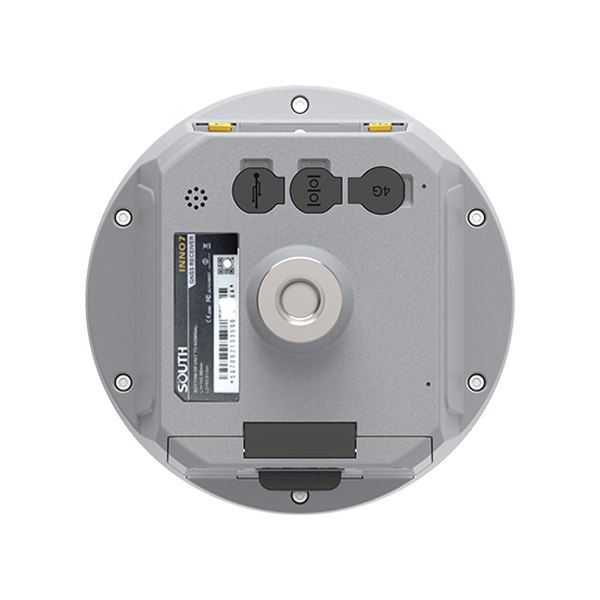

| I/O Port | 5PIN LEMO external power port + Rs232 7PIN LEMO +external USB(OTG)+Ethernet 1 UHF antenna interface 1 GPRS antenna interface (internal and external antenna switchable) SIM card slot (standard) |
| Internal UHF | Radio receive and transmit, 1W/2W/3W switchable, radio router and radio repeater |
| Frequency range | 410-470MHz |
| Communication protocol | Farlink, Trimtalk450s, SOUTH, SOUTH+,SOUTHx, HUACE, Hi-target, Satel |
| Communication range | Typically 15km with Farlink protocol |
| Cellular mobile network | Advanced 5G network communication module, downward compatible with 4G/3G |
| Bluetooth | BLEBluetooth 4.0 standard, Bluetooth 2.1+EDR |
| NFC Communication | Realizing close range (shorter than 10cm) automatic pair between receiver and controller(controller requires NFC wireless communication module else) |
| Modem | 802.11 b/g standard |
| WIFI hotspot | Receiver broadcasts its hotspot form web UI accessing with any mobile terminals |
| WIFI datalink | Receiver can transmit and receive correction data stream via WiFi datalink |
| Storage | 64GB SSD internal storage Automatic cycle storage (The earliest data files will be removed automatically while the memory is not enough) Support external USB storage The customizable sample interval is up to 50Hz |
| Data transmission | Plug and play mode of USB data transmission Supports FTP/HTTP data download |
| Data format | Differential data format: CMR, CMR+, SCMRx, RTCM 2.1,RTCM 2.3, RTCM 3.0, RTCM 3.1, RTCM 3.2 GPS output data format: NMEA 0183, PJK plane coordinate, Binary code, Trimble GSOF Network model support: VRS, FKP, MAC, fully support NTRIP protocol |
| Electronic bubble | Controller software can display electronic bubble, checking leveling status of the carbon pole in real-time |
| IMU | Built-in IMU module, calibration-free and immue to magnetic interference |
| Thermometer | Built-in thermometer sensor, adopting intelligent temperature control technology, monitoring and adjusting the receiver temperature |
| Operating system | Linux |
| Buttons | 2-button and visual operation interface |
| Indicators | 2 LED indicators, data interaction indicator and Bluetooth indicator |
| LCD | 1.54-inch HD color LCD touch screen with resolution 240*240 |
| Web interaction | With the access of the internal web interface management via WiFi or USB connection, users are able to monitor the receiver status and change the configurations freely |
| Voice guidance | The intelligent voice technology provides status and operation voice guidance, supports Chinese/English/Korean/Spanish/Portuguese/Russian/Turkish |
| Secondary development | Provides secondary development package, and opens the OpenSIC observation data format and interaction interface definition |
| Cloud service | The powerful cloud platform provides online services like remote manage, firmware update, online register and etc |
