MetaVerse Painter M2X

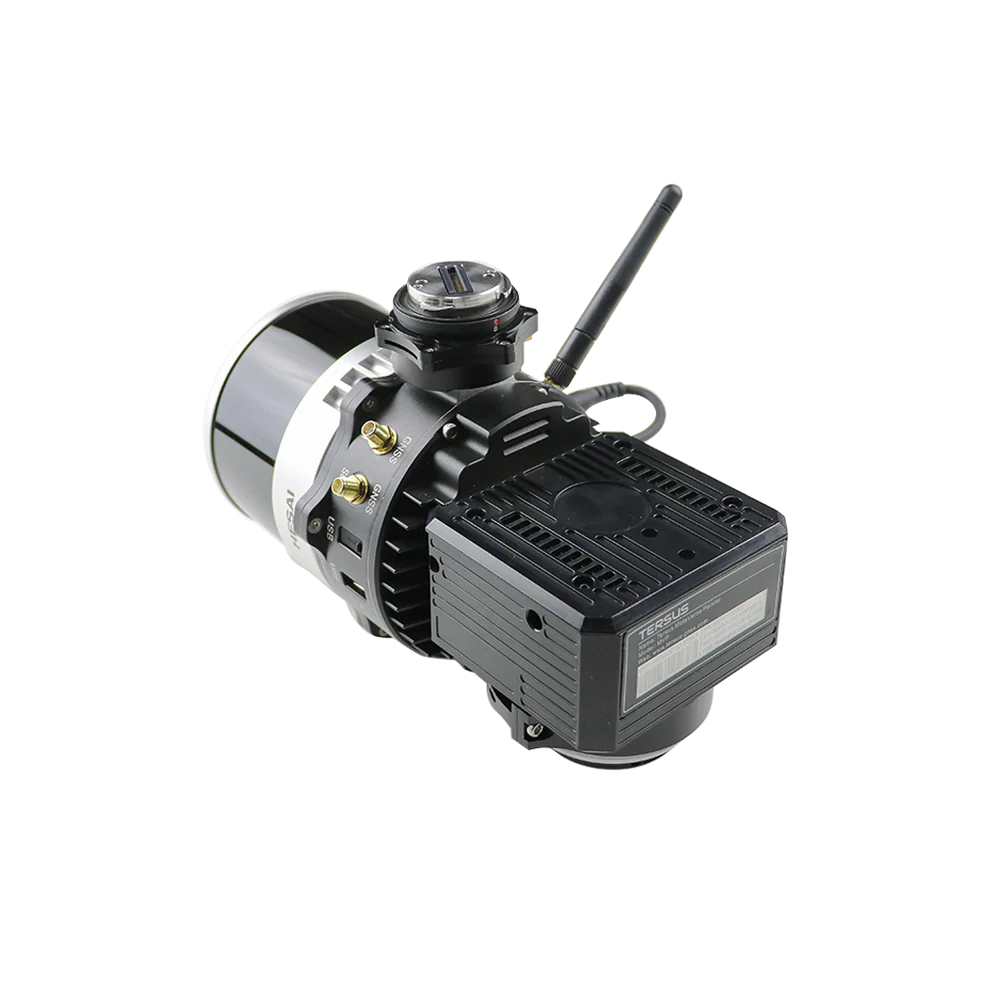

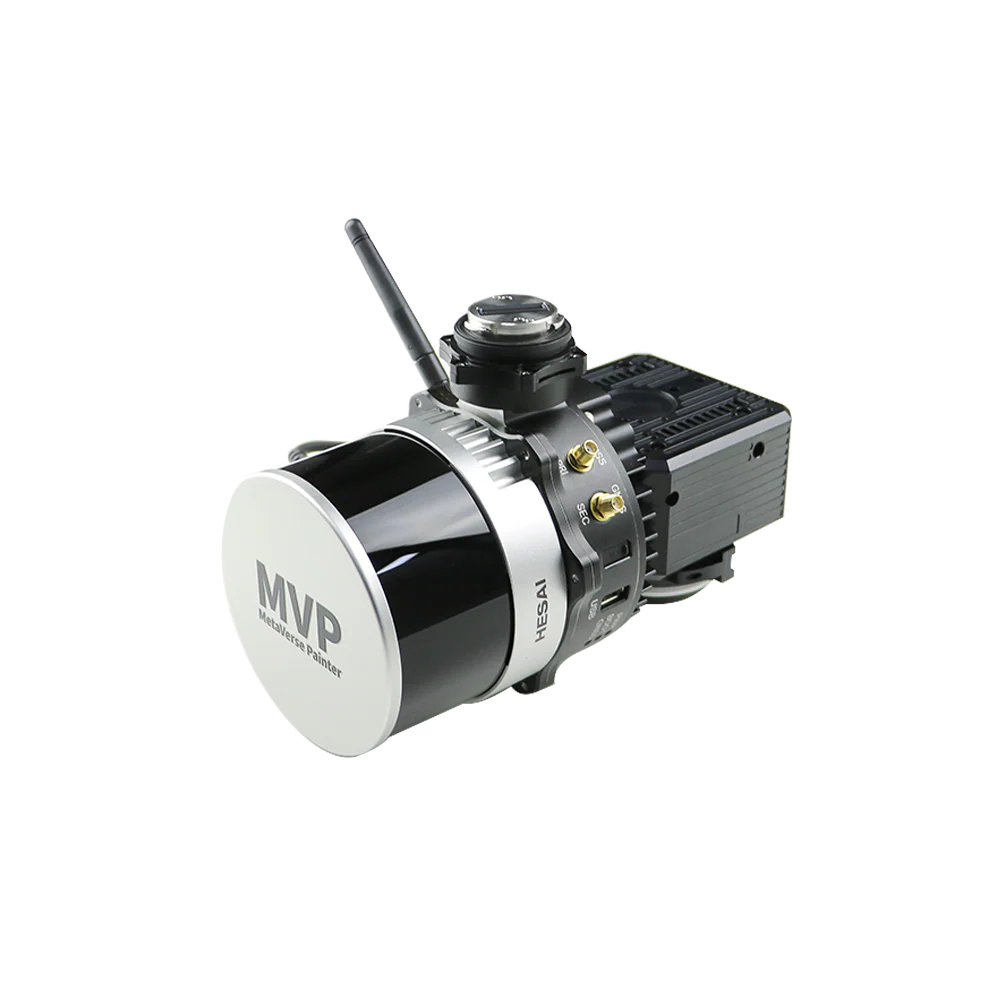

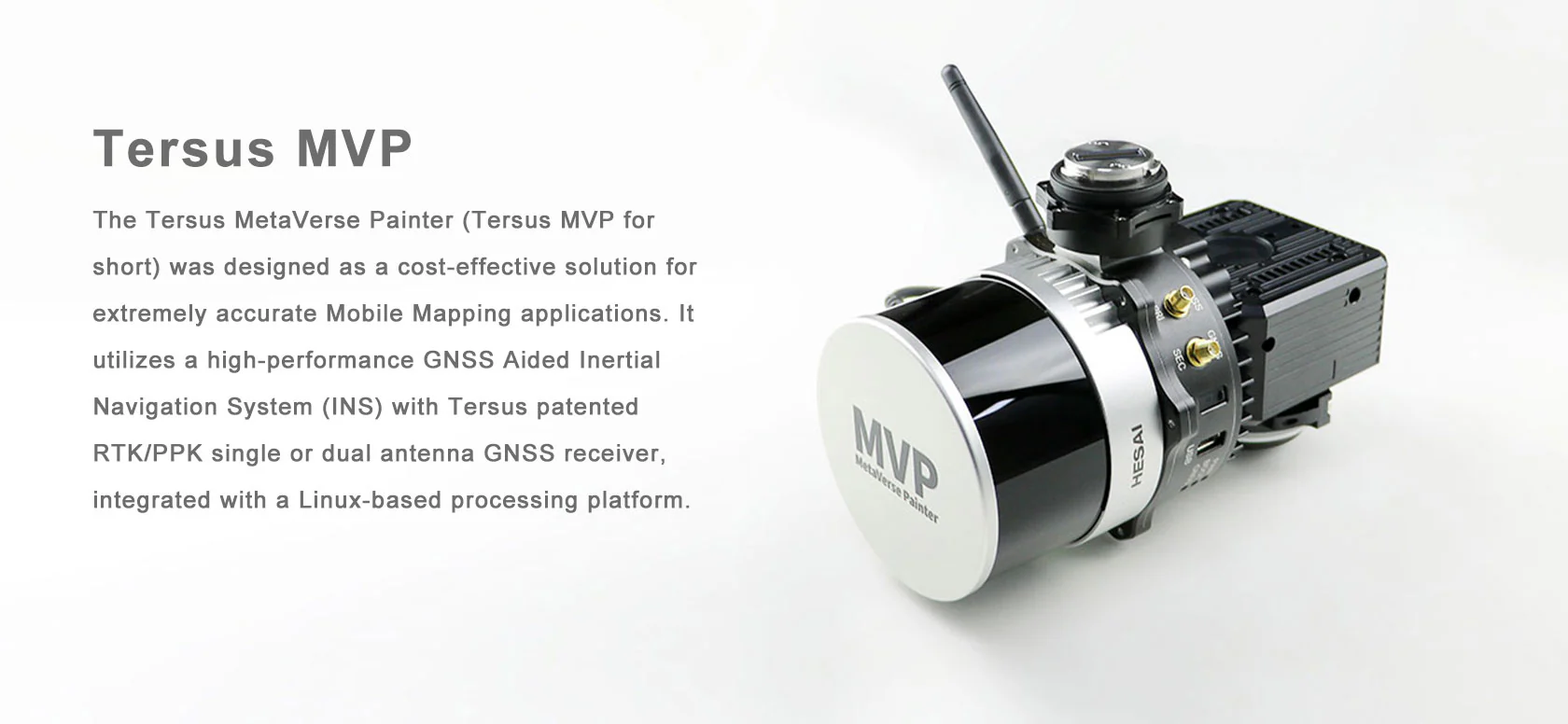

Tersus MetaVerse Painter (MVP for short) is a mobile mapping system that can rapidly capture rich geospatial data while mounted on mobile platforms. As a cost-effective and high-precision mobile mapping application, it utilizes the high-performance GNSS-aided inertial navigation system (INS) and Tersus's patented GNSS receiver and supports RTK/PPK processing. MVP can be used with commercially available LiDARs in the market, such as Hesai, LIVOX, Velodyne, Quanergy, Ouster and RIEGL.

AVAILABILITY: AVAILABLE
Inquire Now

Datasheet_MVP-XT32	Download
Datasheet_MVP-M2X	Download
Brochure_Tersus Metaverse Painter	Download
Brochure_Tersus Metaverse Painter_M2X	Download
Item List_MVP	Download

Tersus MetaVerse Painter

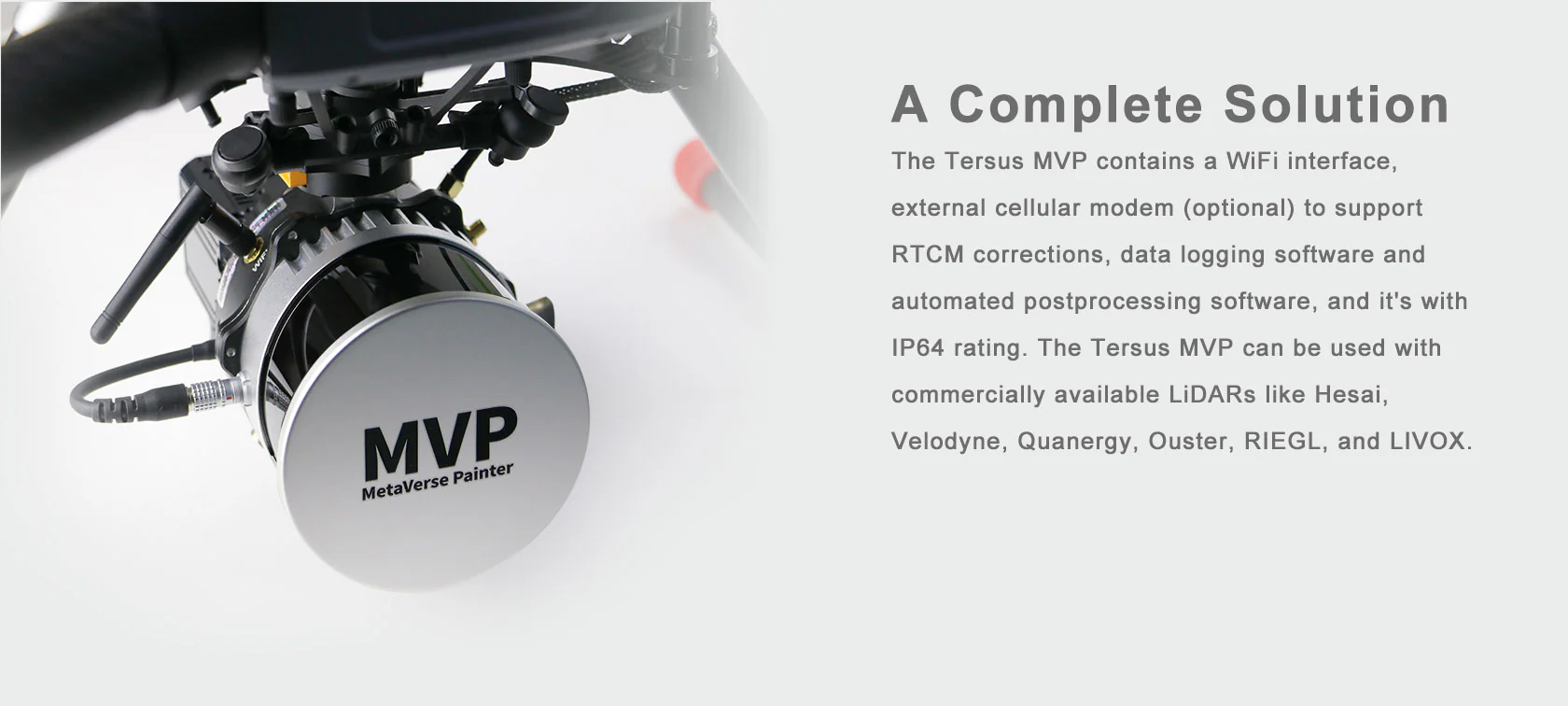

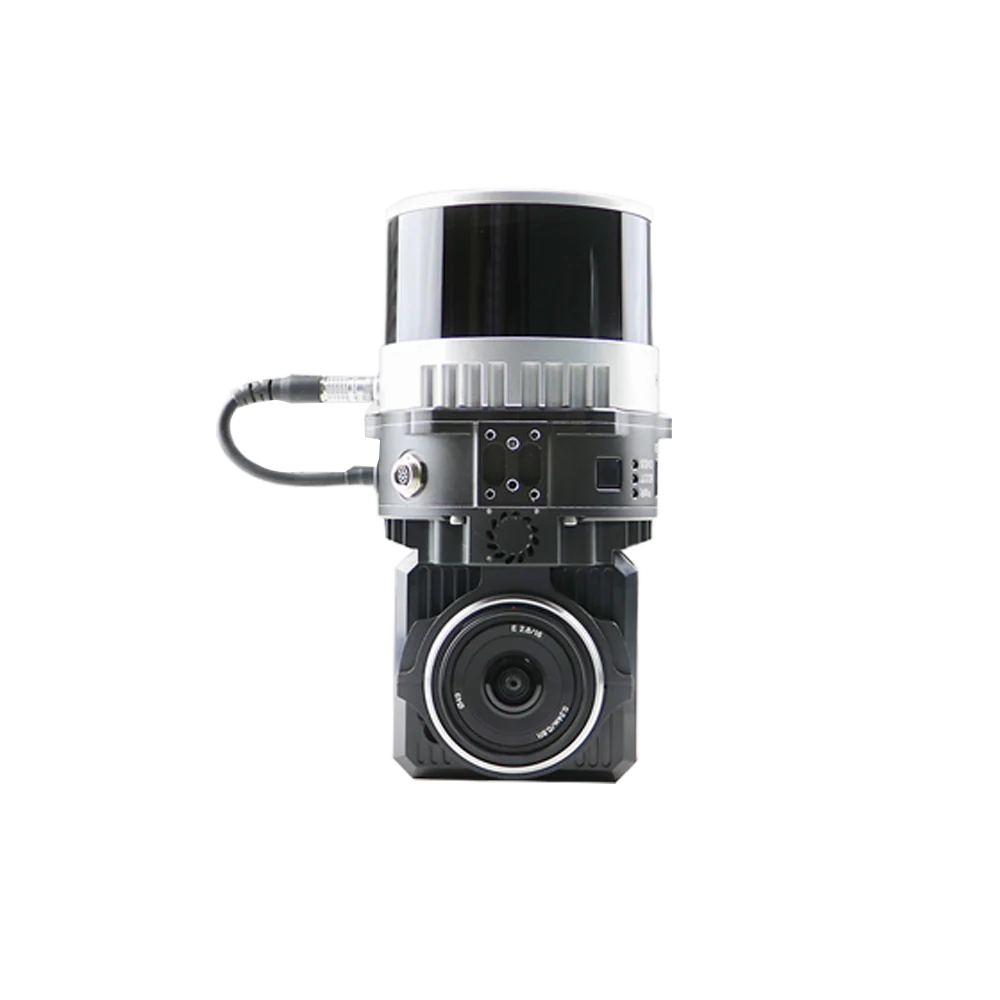

MVP is a complete mobile mapping solution provided by Tersus, including LiDAR, industrial-grade camera, mounting brackets, vibration isolator and other optional equipment, as well as LiDAR Calibration, Bore-sighting, data-logging software and Tersus Engine-supported automatic Post-Processing (PPK) and Point Cloud Processing software.

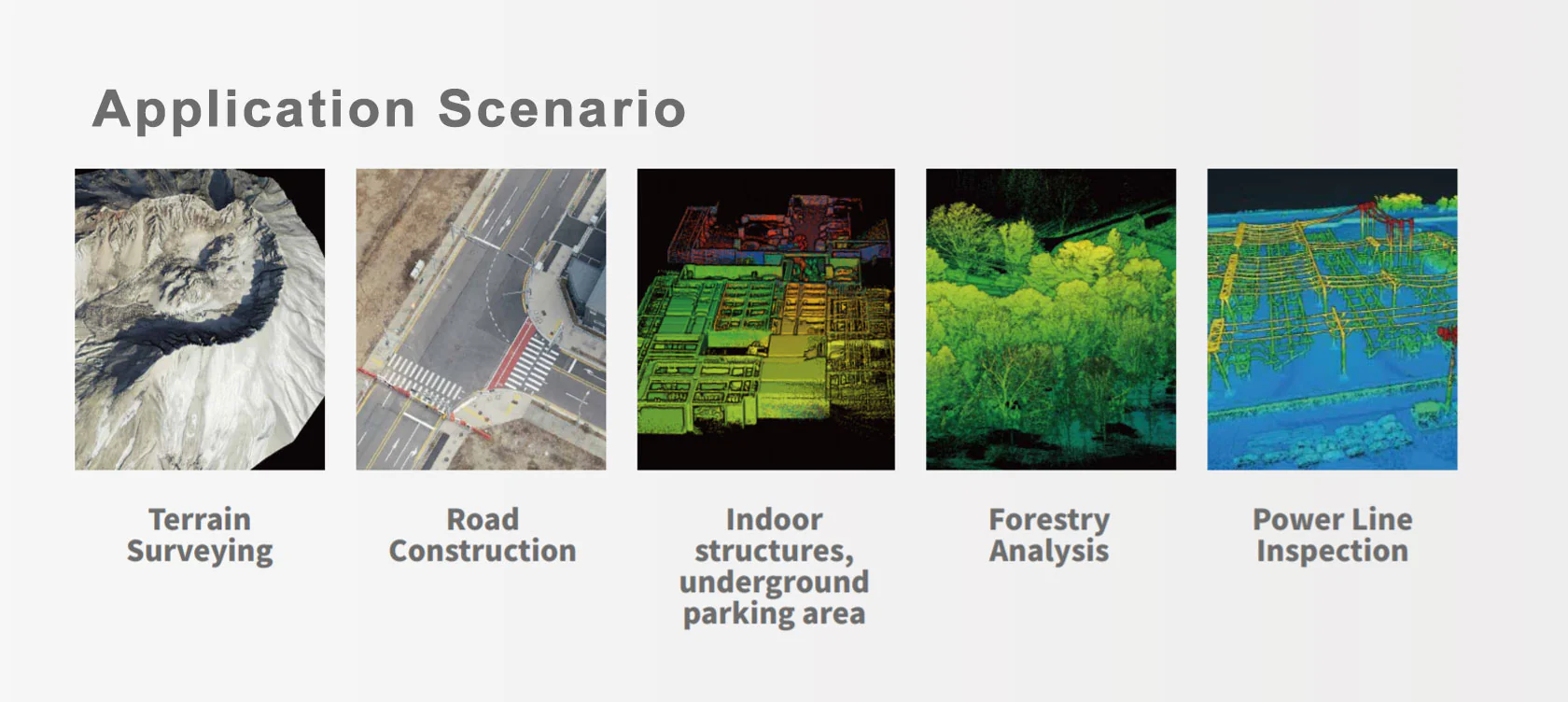

Reconstruct Abundant 3D Paintings

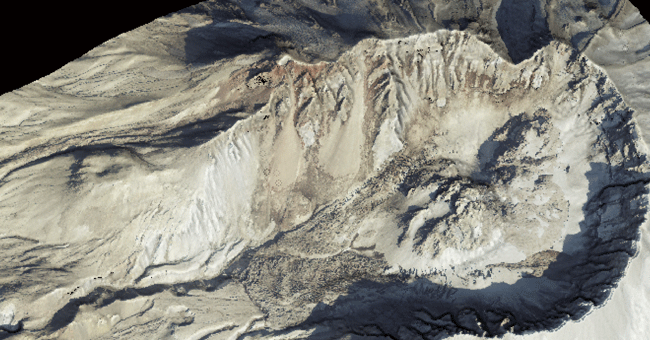

Digital models are commonly used geospatial results generated by LiDAR Mapping System. These products are widely applied in terrain mapping, monitoring and reconstruction.

CAD

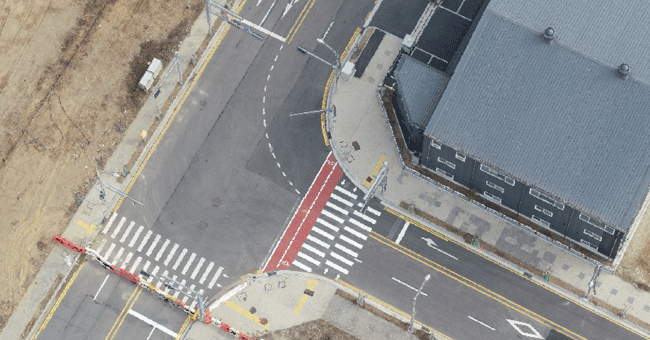

Extremely precise 3D LiDAR data for purposes like analysis of road infrastructure, locating light poles and traffic signs, new planning and asset management.

Road

Supports online maps like OSM and Google, as well as imported files like DXF, KML, KMZ and LandXML as base maps.

Map

In building construction and infrastructure, MVP offers a detailed and accurate point cloud data for smart city, street mapping and BIM.

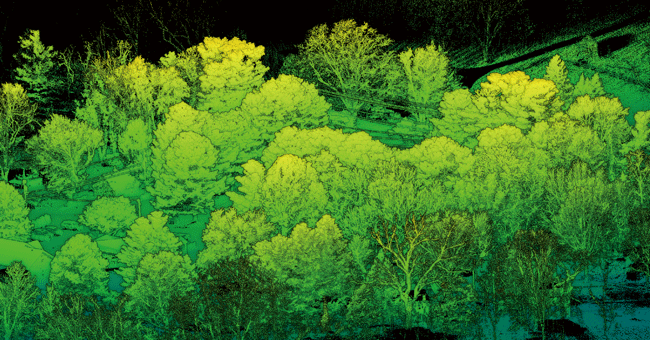

Provide detailed information on forest structures, including tree height, diameter, volume, leaf area index, etc. Also efficiently obtain under-tree ground surface information for digital models.

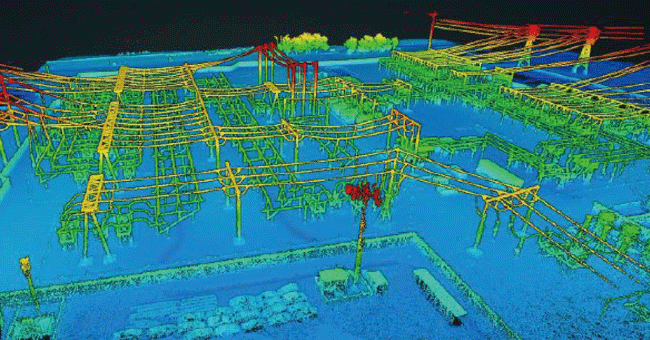

Efficiently acquire dense point clouds for detecting downed power lines, hazardous trees, and other potential hazards.

Cloud

Exceptional Efficiency

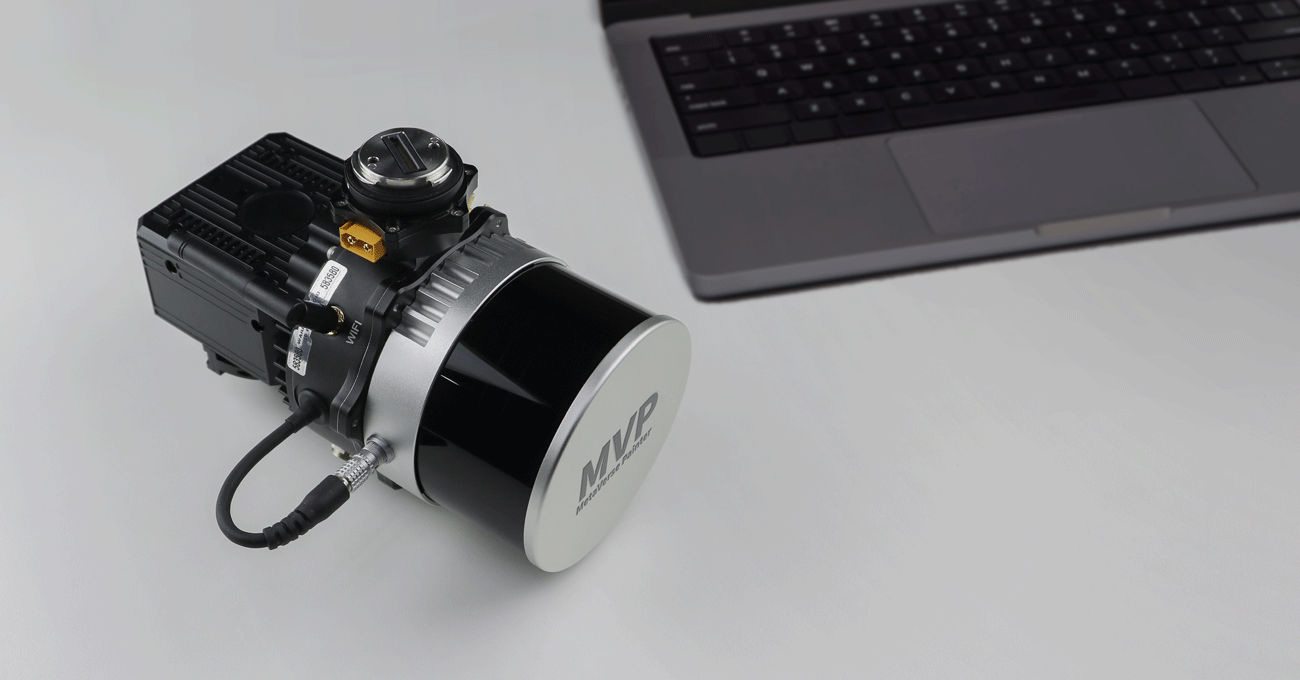

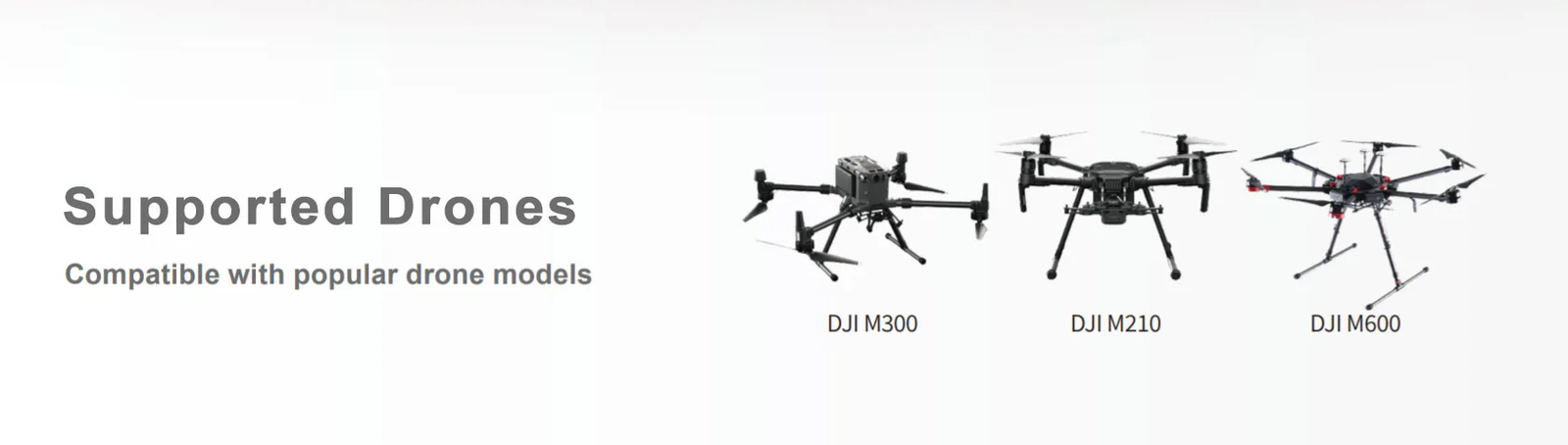

The MVP LiDAR system is ready for work as soon as powered on and free of additional calibration. Light weight and low consumption allow up to 35 min Flight Time (DJI M350). 360°FOV provides broad coverage of working area.

Fix in seconds

Streamlined Workflow

asy field work operation with one-click button or web interfaces. Fully automated data processing by one simple click without manual configuration of complex parameters.

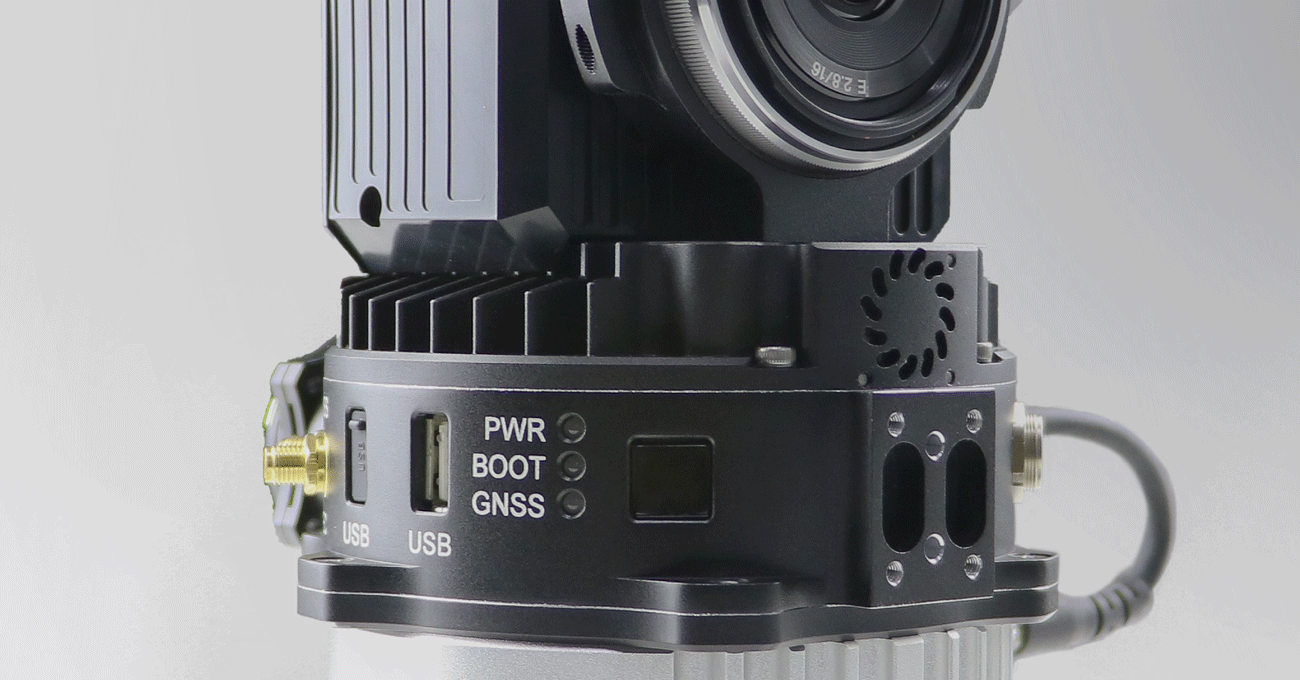

Compact design

High Accuracy

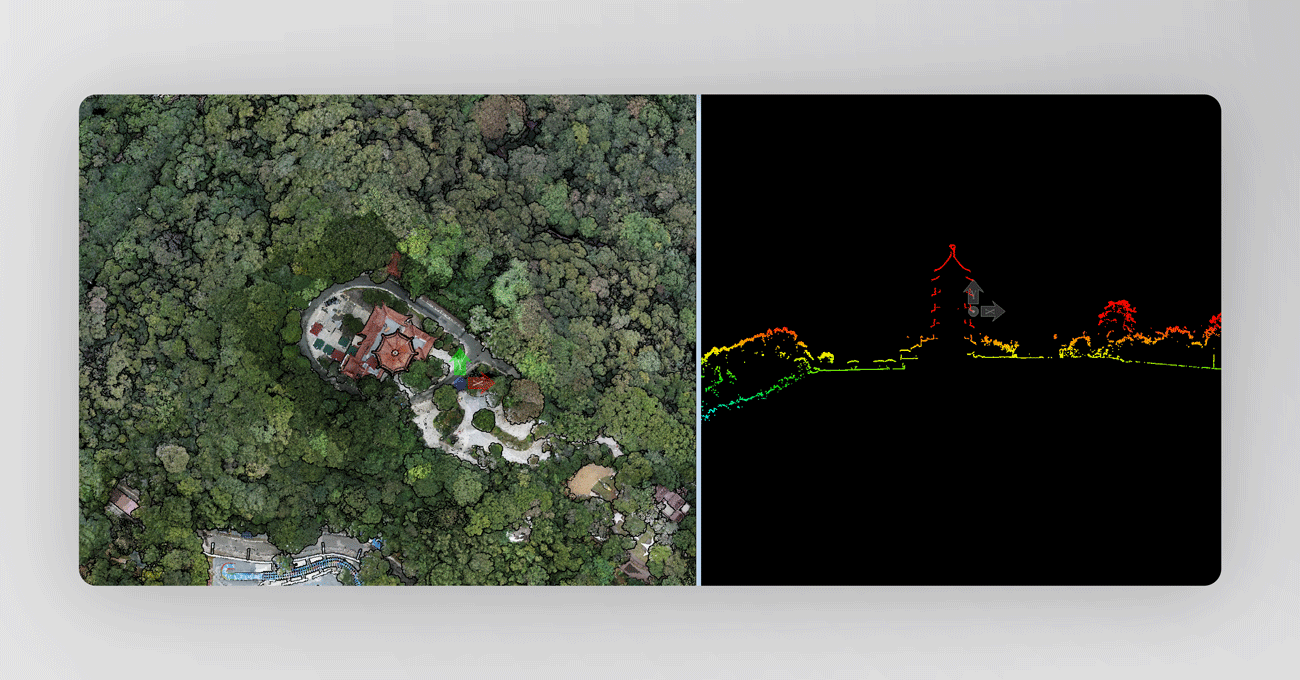

By combining advanced GNSS and IMU system, supported by Tersus self-developed PPK/RTK algorithm, MVP achieves 3cm horizontal and vertical accuracy. Sample data was collected with DJI M350 at 80m flight height, please download drone platform data↓ or vehicle platform data↓.

Smart battery

Powerful Point Cloud Software

TersusMVP is a user-friendly point cloud pre-processing software, which can automatically process trajectory, LiDAR georeferencing and image colorization. Flexible cloud filter allows to select desired scanning angle, distance and time. Coordinate system selection function supports local coordinate result output. More powerful features are keeping added continuously.

Field work
