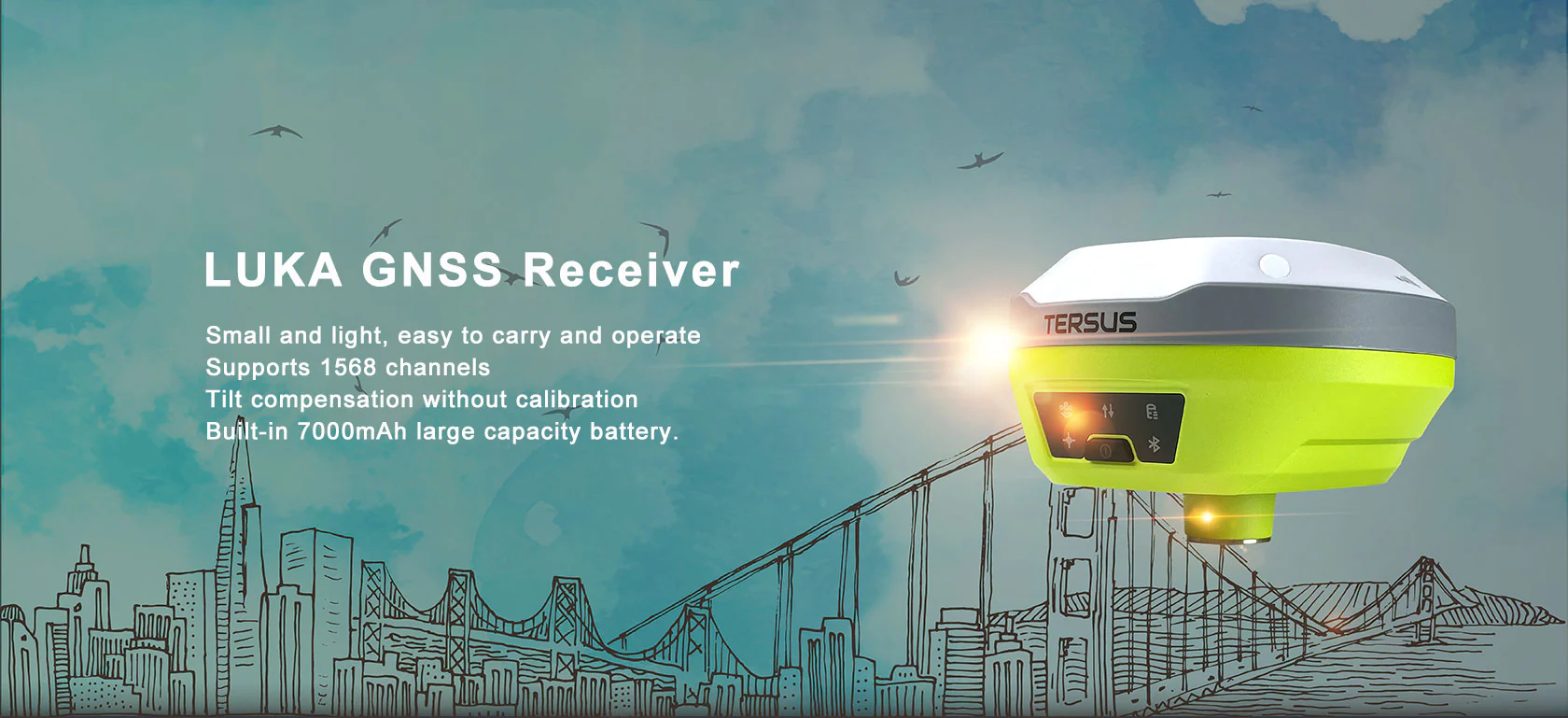

Luka Gnss Receiver

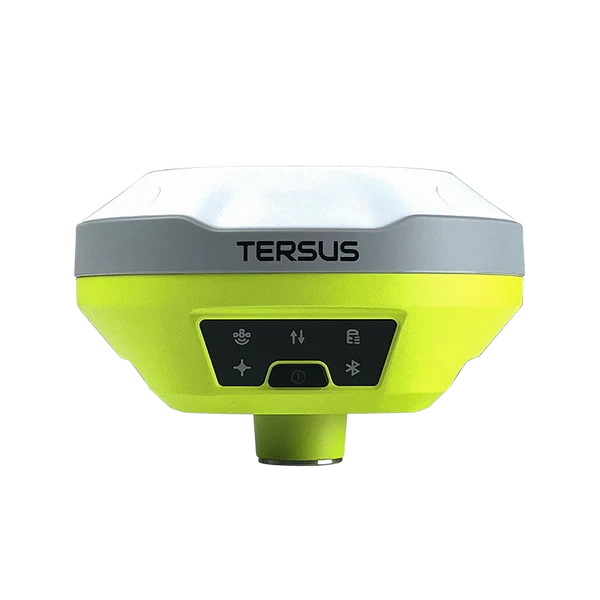

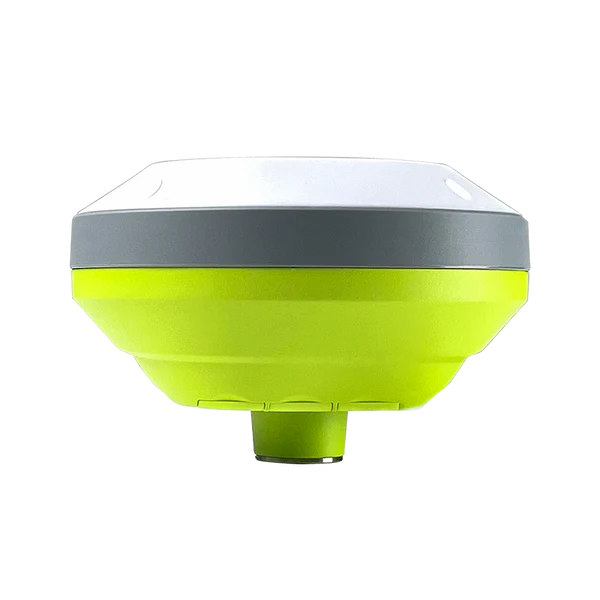

The LUKA-TAP GNSS Receiver adopts satellite-based precise point positioning service developed by Tersus GNSS, which allows users to achieve centimeter-level high-precision positioning worldwide. With TAP, the GNSS rover receiver will not need to work with the local RTK base station or CORS, but directly receives corrections broadcast by the satellites, such as ephemeris error, satellite clock error, etc.

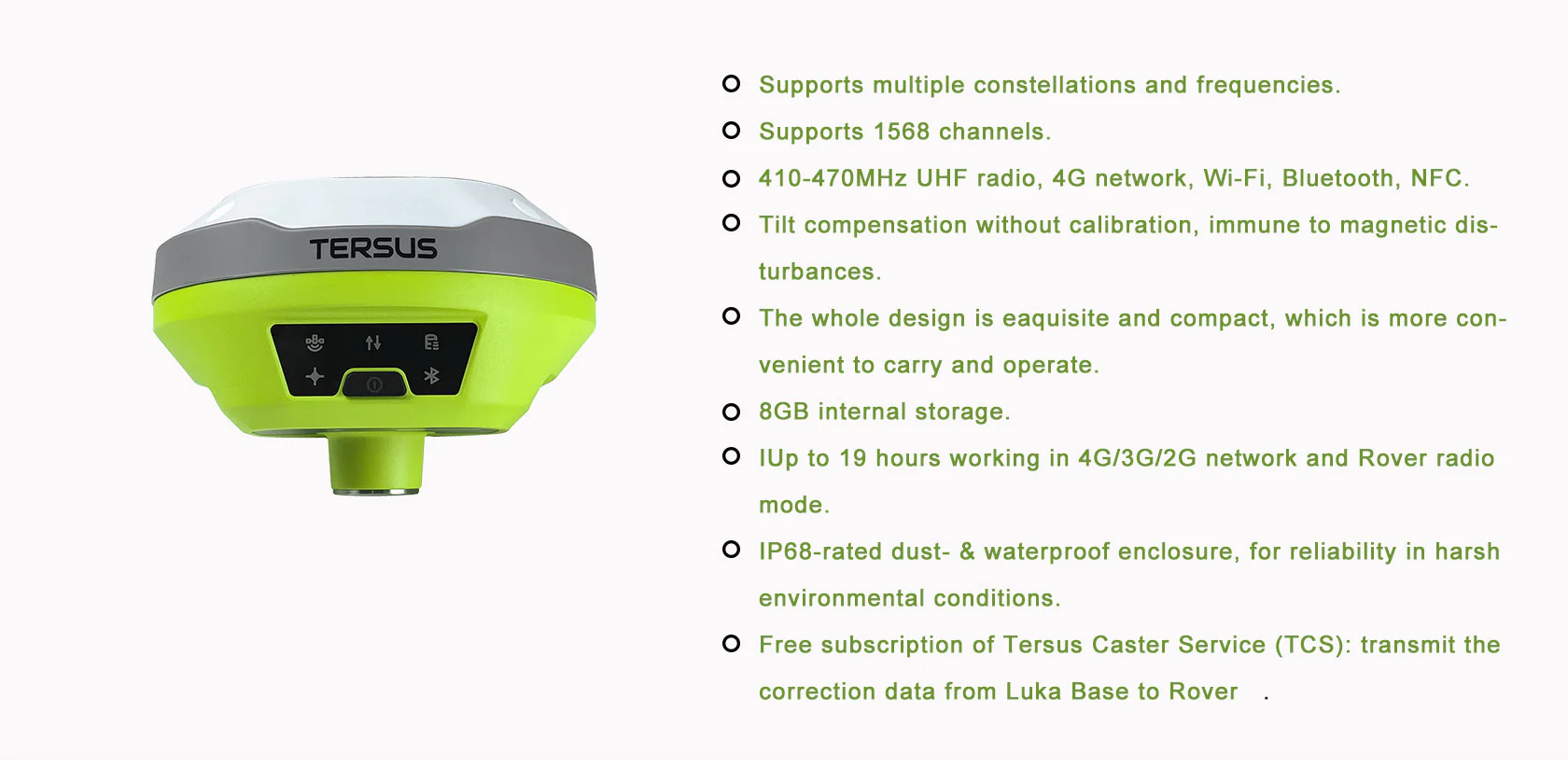

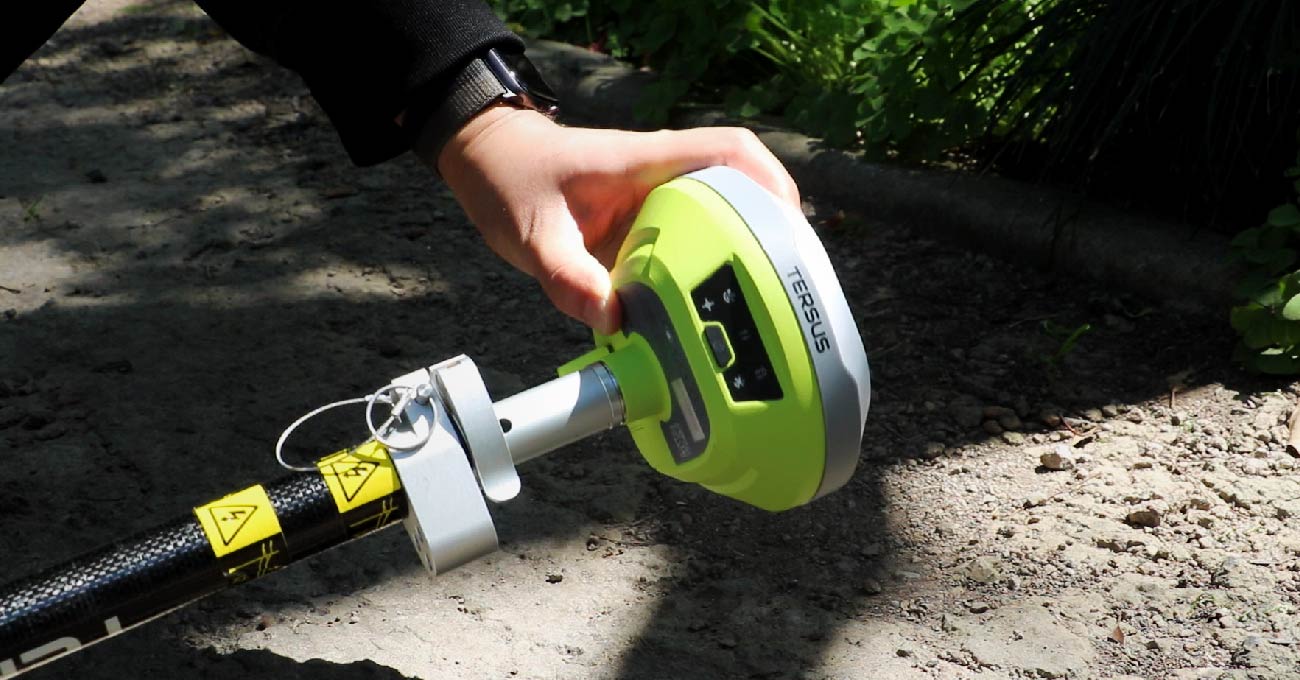

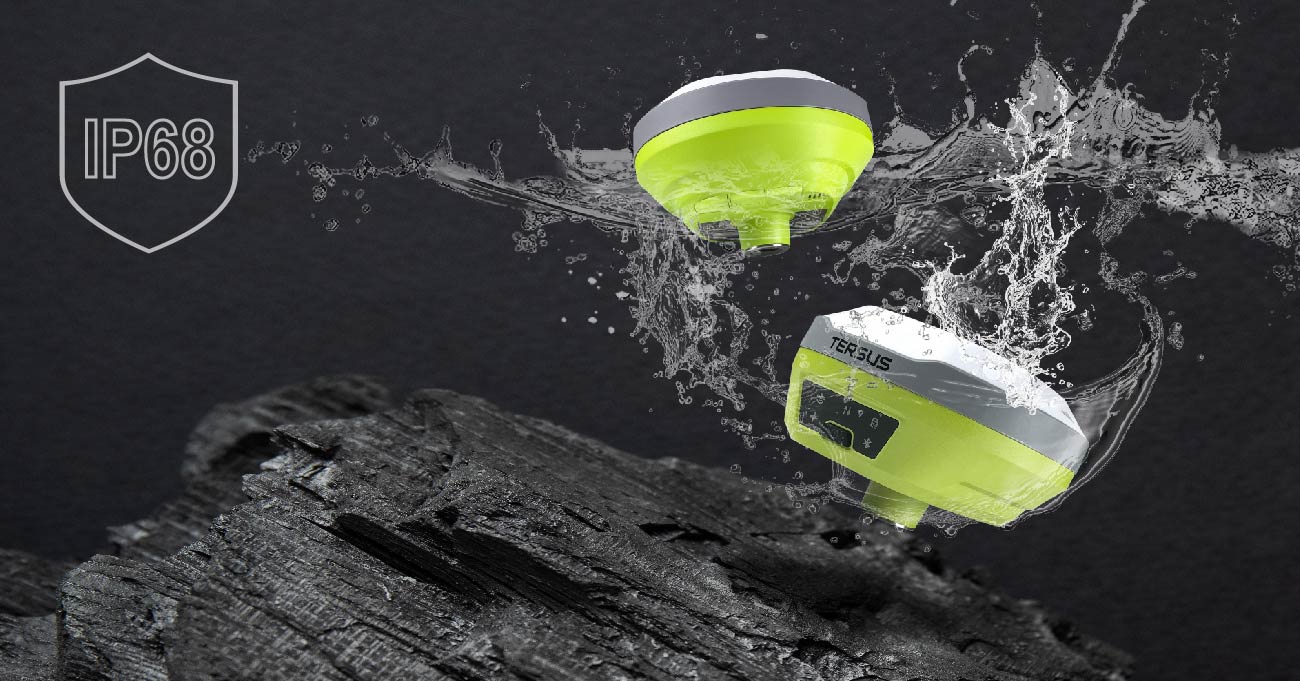

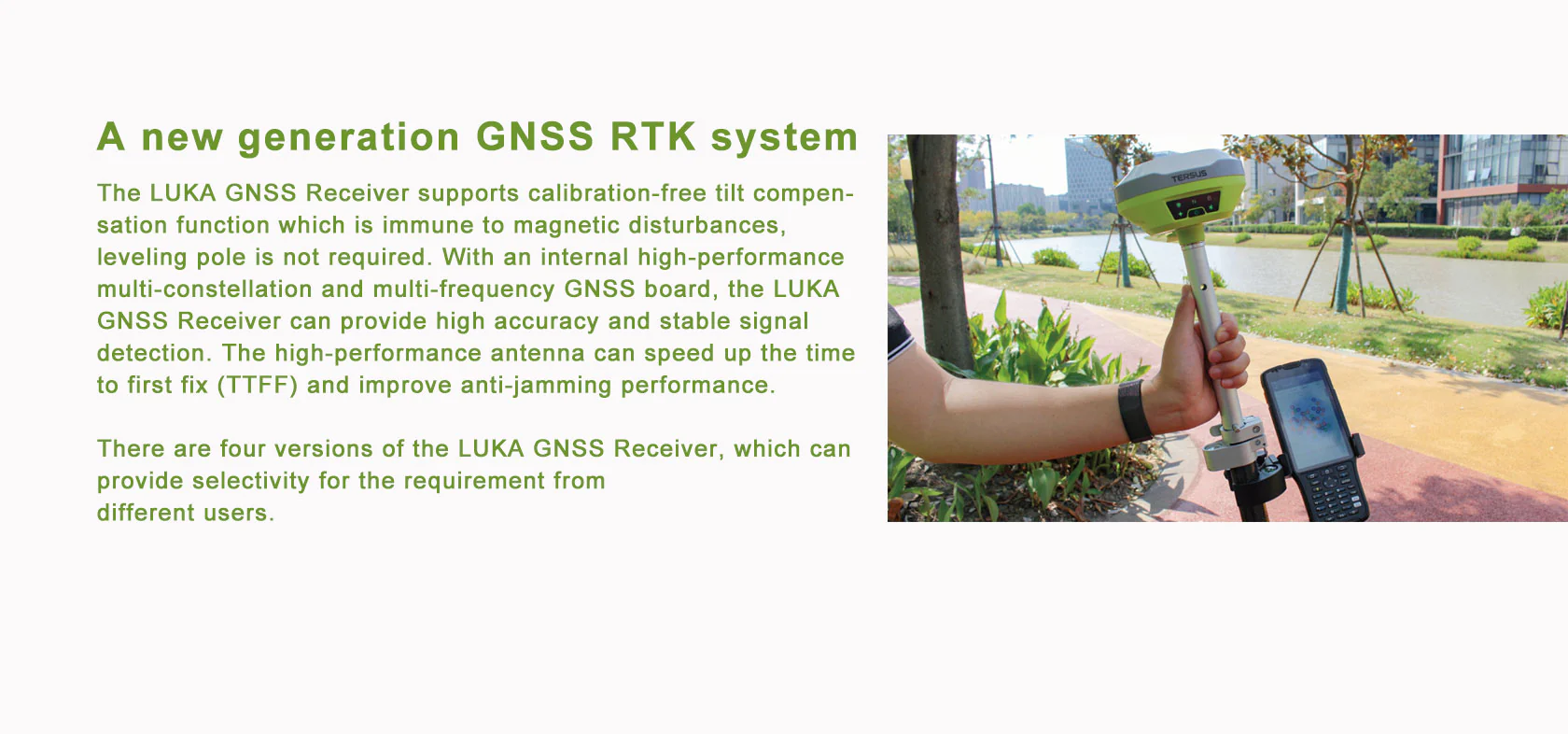

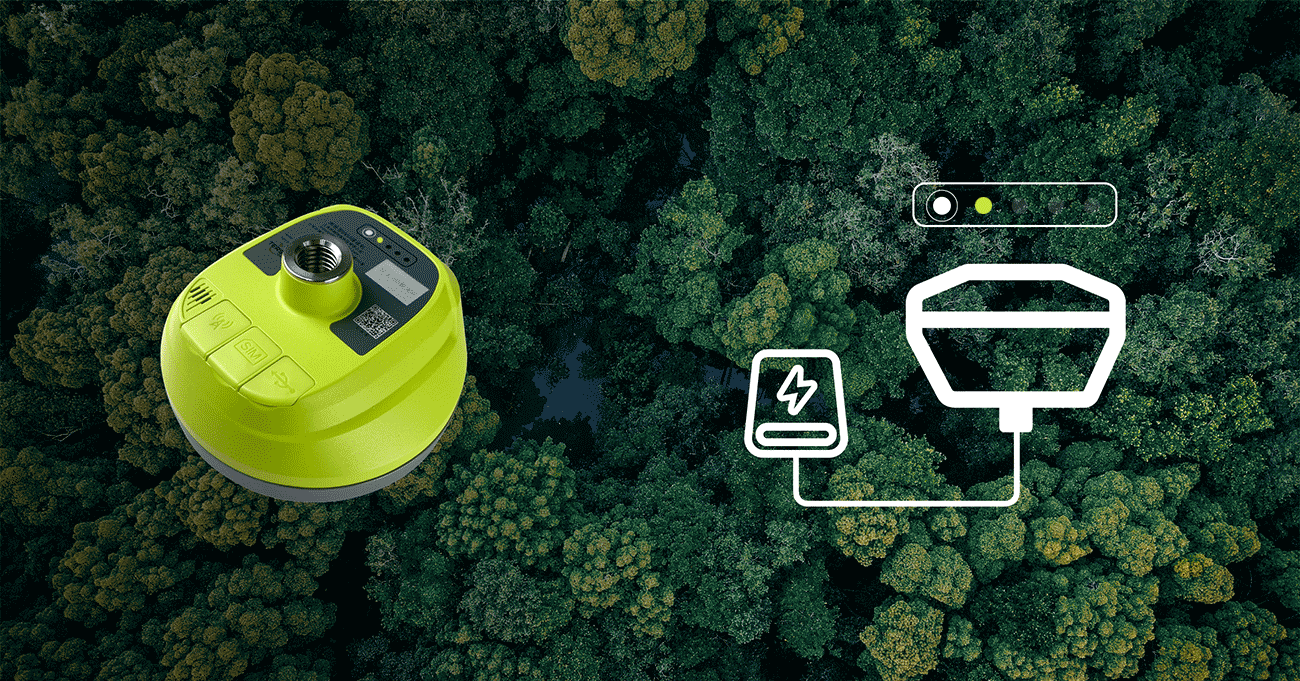

LUKA-TAP can track full-constellation and multi-frequency for enhanced performance. It provides centimetre-level positioning accuracy, and fix in seconds even in challenging conditions. LUKA-TAP supports a calibration-free tilt compensation function immune to magnetic disturbances; a leveling pole is unnecessary. Built-in high-capacity lithium battery provides 19 hours of field work, with a smart power display. It can be quickly charged in about 3 hours, and a power bank can be used during field surveying work. The rugged housing with IP68 protects the equipment from harsh environments.


Image 1
Image 2
Channels 1568
Single Point Positioning Accuracy (RMS) Horizontal: 1.5m, Vertical: 2.5m
DGPS Positioning Accuracy (RMS) Horzontal: 0.25m, Vertical: 0.5m
High-Precision Static (RMS) Horizontal: 2.5mm+0.1ppm, Vertical: 3.5mm+0.4ppm
Image 1
Image 2
Datasheet_LUKA for Philippines Download
Datasheet_LUKA-TAP Download
Firmware Upgrade Guide_LUKA Download
Item List_LUKA_Base Download
User Manual_LUKA Download
