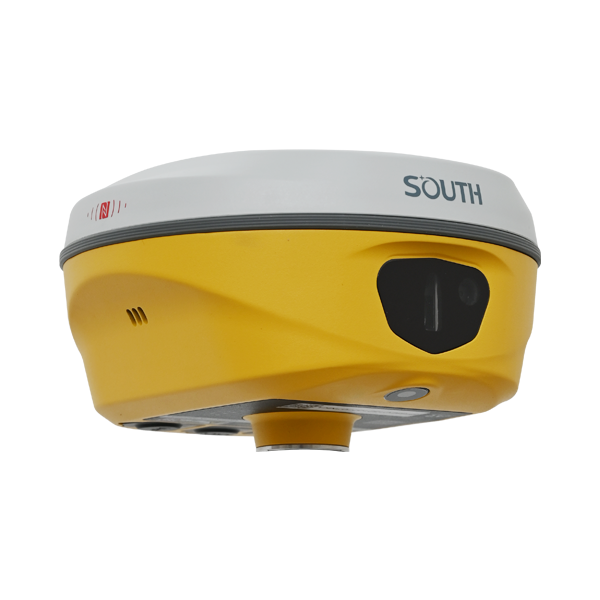

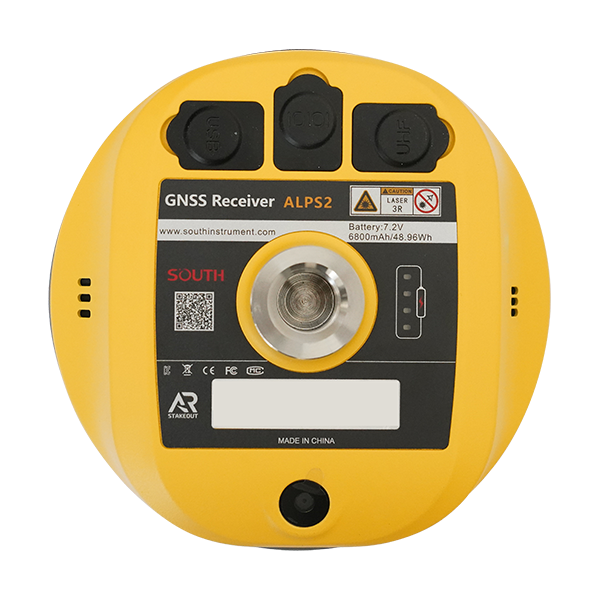

ALPS 2
ALPS1 allows you to shoot a group of photos or videos in real time, obtaining coordinates for hundreds of points within minutes. It outpaces traditional RTK in data acquisition speed.
With laser measurement, ALPS1 has a broader working range and fewer blind spots, enabling remote measurements in areas with poor GNSS signal quality. Previously challenging spots, like spaces under rooftops and areas with obstacles, are now easily measurable
- AVAILABILITY: AVAILABLE
- Inquire Now
| Channels | 1698 |
|---|---|
| GPS | L1C, L1C/A, L2C, L2P(Y), L5 |
| GLONASS | G1, G2, G3 |
| BDS | B1I, B2I, B3I, B1C, B2a, B2b |
| GALILEOS | E1, E5a, E5b, E6, AltBOC* |
| SBAS | L1* |
| IRNSS | L5* |
| QZSS | L1, L2C, L5* |
| MSS L-Band | Reserve |
| Positioning Output Rate | 1Hz ~ 20Hz |
| Initialization Time | < 10s |
| Initialization Reliability | > 99.99% |
| Code Differential GNSS Positioning |
Horizontal: 0.25 m + 1 ppm RMS Vertical: 0.50 m + 1 ppm RMS |
| GNSS Static |
Horizontal: 2.5 mm + 0.5 ppm RMS Vertical: 3.5 mm + 0.5 ppm RMS |
| Static (Long Observation) |
Horizontal: 2.5 mm + 0.1 ppm RMS Vertical: 3 mm + 0.4 ppm RMS |
| Rapid Static |
Horizontal: 2.5 mm + 0.5 ppm RMS Vertical: 5 mm + 0.5 ppm RMS |
| PPK |
Horizontal: 3 mm + 1 ppm RMS Vertical: 5 mm + 1 ppm RMS |
| RTK (UHF) |
Horizontal: 8 mm + 1 ppm RMS Vertical: 15 mm + 1 ppm RMS |
| RTK (NTRIP) |
Horizontal: 8 mm + 0.5 ppm RMS Vertical: 15 mm + 0.5 ppm RMS |
| Laser Measurement | 1 cm + 5 mm/m |
| SBAS Positioning | Typically < 5m 3DRMS |
| RTK Initialization Time | 2 ~ 8s |
| IMU Accuracy | 8mm + 0.7 mm/° tilt |
| IMU Tilt Angle | Optimal accuracy within 120° |
| Dimension | 134mm (φ) × 79mm (H) |
| Weight | 860g (battery included) |
| Material | Magnesium aluminum alloy shell |
| Operating Temperature | -45℃ ~ +75℃ |
| Storage Temperature | -55℃ ~ +85℃ |
| Humidity | 100% Non-condensing |
| Waterproof/Dustproof | IP68 standard |
| Shock/Vibration | Withstand 2m pole drop onto cement |
| Power Supply | 6–28V DC, overvoltage protection |
| Battery | Inbuilt 7.4V 6800mAh rechargeable Lithium-ion battery |
| Battery Life |
Static: up to 25h UHF RTK Rover (no camera): up to 20h Laser Survey: up to 15h Visual Stakeout: up to 15h UHF RTK Base: up to 12h |
| I/O Port |
5-PIN LEMO (external power + RS232) Type-C (charge + OTG + Ethernet) UHF antenna interface |
| Internal UHF | 2W Radio Tx & Rx |
| Frequency Range | 410–470MHz |
| Communication Protocol | Farlink, Trimtalk, SOUTH, HUACE, Hi-target, Satel |
| Communication Range | Typically 8–10km (12–15km optimal) |
| Bluetooth | Bluetooth 5.0, 3.0/4.2, 2.1+EDR |
| NFC Communication | Support |
| Modem | 802.11 b/g/n |
| Storage |
16GB SSD internal storage Automatic cycling storage External USB storage (OTG) Sample interval up to 20Hz |
| Data Transmission |
USB plug-and-play Supports FTP/HTTP download |
| Data Format |
Static: STH, Rinex 2.01, Rinex 3.02 Differential: RTCM 2.1, 2.3, 3.0, 3.1, 3.2 Output: NMEA 0183, PJK plane coordinate, Binary Supports VRS, FKP, MAC, NTRIP protocol |
| IMU | Built-in IMU, calibration-free, 120° |
| Camera |
Front Camera: 8MP Bottom Camera: 2MP (Live View AR stakeout) |
| Laser | 3R green laser, 30m working range |
| Electronic Bubble | Real-time leveling display in controller software |
| Thermometer | Smart temperature control monitoring |
| Operating System | Linux |
| Buttons | Single button |
| Indicators | Data and power indicators |
| Web Interaction | Web UI via WiFi or USB for monitoring & configuration |
| Voice Guidance | Chinese, English, Korean, Spanish, Arabic, Portuguese, Russian, Turkish, French, Italian |
| Secondary Development | SDK available; OpenSIC observation format & interface |
| Cloud Service | Remote management, firmware updates, online registration |
