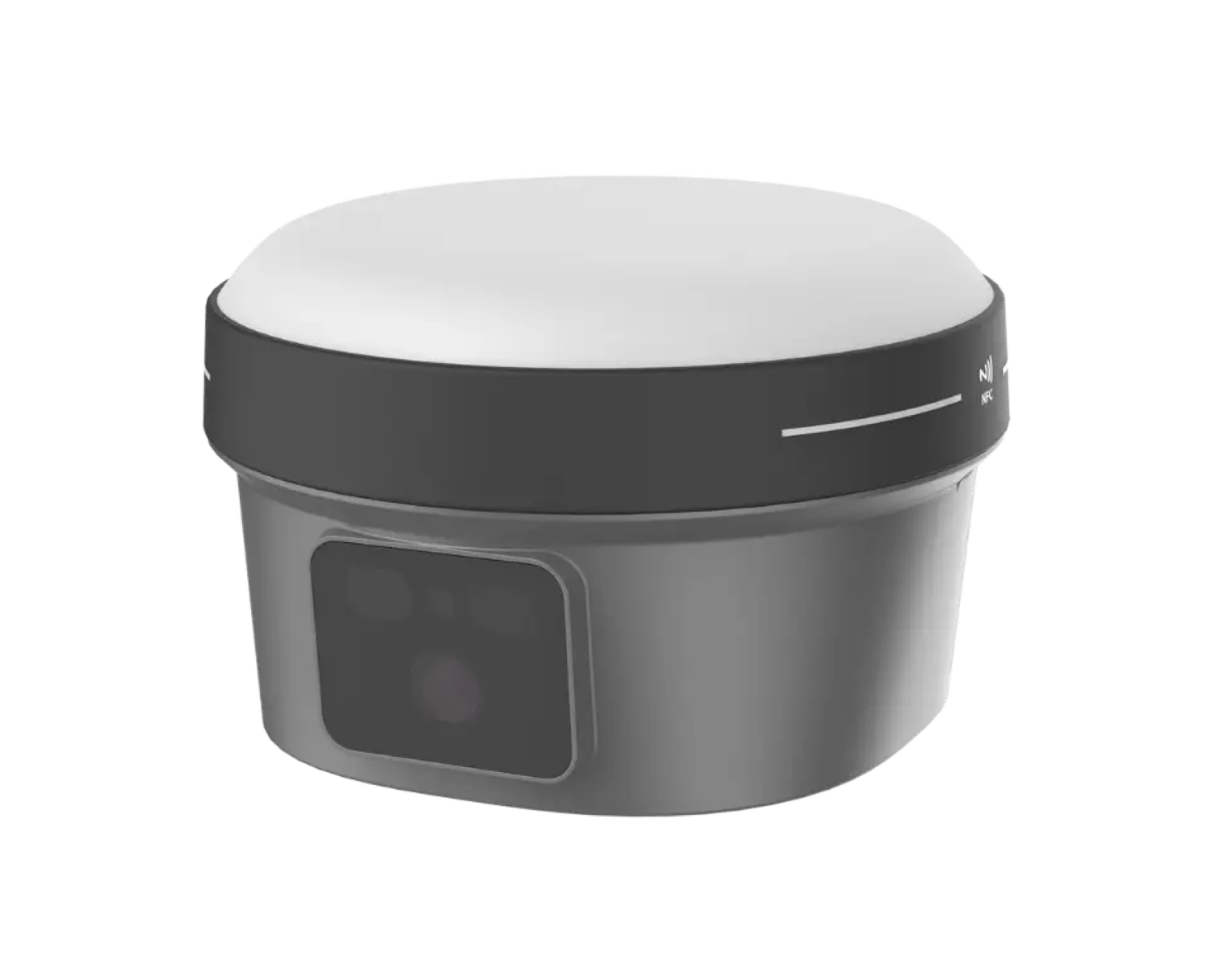

FJD Trion V10L

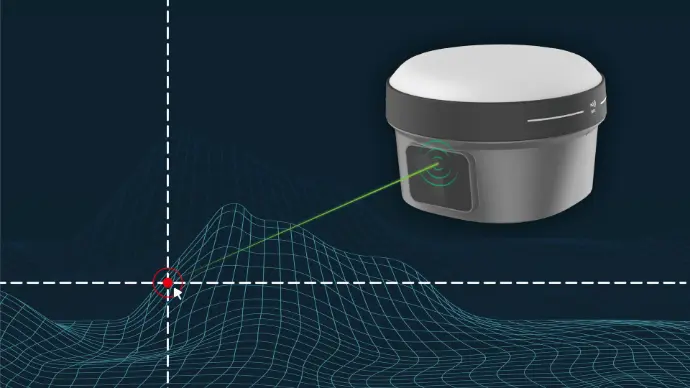

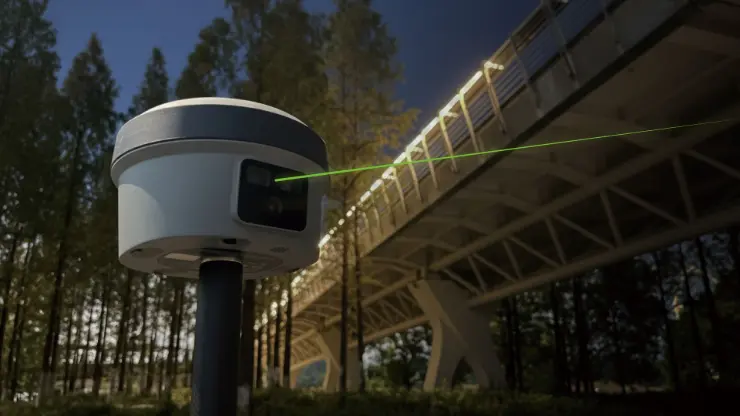

Building on the reliable V10 series, the V10L takes your surveying to the next level with superior accuracy, vibrant clarity, and unmatched safety, day or night. Powered by a visible green laser and a 2MP night vision camera, it provides clear previews even in darkness, ensuring eye safety while providing easy aiming for non-contact laser measurement and stakeout. With the EasyFix feature, the V10L automatically aligns, zooms, and adjusts the camera, helping you lock on targets quickly and get your project done faster and with confidence.
Choose flexibly from two options: the V10La or V10Li. The V10La is the standard version, while V10Li has all the same features plus a visual measurement function. You can choose the version that best suits your needs and budget.
- AVAILABILITY: AVAILABLE
- Inquire Now
GNSS
| Channels | 1408 channels |
|---|---|
| GPS | L1A, L1C, L2C, L2P, L5 |
| GLONASS | L1, L2, L3 |
| BeiDou | B1I, B2I, B3I, B1C, B2a, B2b |
| Galileo | E1, E5a, E5b, E6 |
| QZSS | L1, L2C, L5, L6* |
| IRNSS | L5* |
| SBAS | L1C/A |
| HAS-PPP | E6 |
| * Supported by firmware upgrade | |
Communications & Data Storage
| SIM Card Type | Nano-SIM |
|---|---|
| Network Modem | Integrated 4G: TDD-LTE, FDD-LTE, WCDMA, EDGE, GPRS, GSM |
| Wi-Fi | 2.4 & 5 GHz, 802.11 a/b/g/n/ac |
| Wireless Connection | NFC |
| Ports | 7-pin LEMO, UHF antenna port, USB Type-C |
| Built-in UHF Radio |
Rx/Tx: (410-470) MHz / (902-928) MHz Transmit Power: 2 W Protocols: TRIMTALK, TRIMMARK III, TT450S, TRANSEOT, Satel 3AS 4FSK, LoRa Link Rate: 9,600 – 19,200 bps Range: Typical 6–12 km, up to 16 km (optimal) |
| Data Formats | I/O: NMEA-1083, RTCM3.X Input: RTCM2.X, CMR |
| Data Storage | 32 GB internal memory |
Positioning Performance
| RTK Performance |
H: 8 mm + 1 ppm RMS V: 15 mm + 1 ppm RMS Initialization: <5 s Reliability: >99.9% |
|---|---|
| Post-processing Static | H: 2.5 mm + 0.5 ppm RMS V: 5 mm + 0.5 ppm RMS |
| High-precision Static | H: 2.5 mm + 0.1 ppm RMS V: 3.5 mm + 0.4 ppm RMS |
| PPK Accuracy | H: 3 mm + 1 ppm RMS V: 5 mm + 1 ppm RMS |
| PPP Accuracy | Horizontal: ±20 cm RMS Vertical: ±40 cm RMS |
| Code Differential | H: 0.4 m RMS | V: 0.8 m RMS |
| Autonomous | H: 1.5 m RMS | V: 2.5 m RMS |
| SBAS | 60 cm |
| Positioning Rate | 1 Hz, 2 Hz, 5 Hz, 10 Hz |
| Visual Survey Accuracy | Typically 3 cm (2–15 m) |
| Tilt Angle | 0 – 60° |
| RTK Accuracy with Tilt | RMS: 8 mm + 0.6 mm/° |
| Time to First Fix |
Cold start: <20 s Warm start: <5 s Re-acquisition: <1 s |
| Laser Measurement Accuracy |
≤2 cm within 5 m ≤3 cm within 10 m ≤4 cm within 15 m |
Hardware
| Temperature | Operating: −35℃ to 65℃ Storage: −40℃ to 70℃ |
|---|---|
| Humidity | 95% non-condensation |
| Ingress Protection | IP68, dustproof, 1 m immersion |
| Drop Resistance | 2-meter pole-drop |
| Battery | Built-in Li-ion, 7000 mAh, 7.4 V, 30 W PD fast charge |
| Operating Time | Rover: 15 h, Base: 10 h, Static: >25 h |
| External Power Input | 9 – 28 V DC |
| Dimensions | Φ130 × 83 mm |
| Weight | ≈ 980 g |
| OLED Screen | 1.41″ (320×360, 274 ppi) |
| Front Panel | 4 LEDs, 2 physical buttons |
| Power Consumption |
UHF/4G RTK (no camera): ~3 W Visual survey/stakeout: ~4.5 W |
| Tilt Sensor | E-bubble leveling, immune to magnetic disturbance |
Camera
| Sensor Resolution | Dual 2 MP |
|---|---|
| Field of View | 88° |
| Image Group Capture |
Video photogrammetry Max capture time: 30 s Image group size: ~30 MB |
| Illumination |
Starlight-grade global shutter Large format sensor (3µm × 3µm) |
| Visual Layout | VFOV: 63° | HFOV: 76° |
