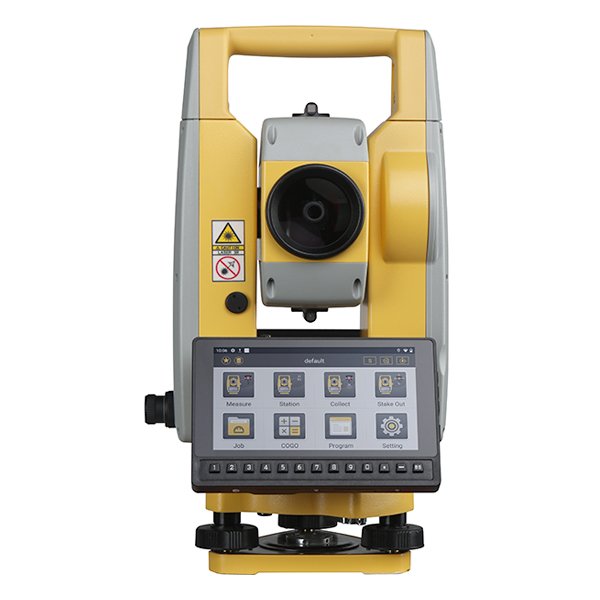

NS30
● New! Android 11.0 Operating System
● Reliable EDM - 1000m Non-Prism Range
● High Precision - 2”, 2+2ppm
● User Friendly with EDM Trigger Key
● 5.5 Inches Color Touchscreen
● Fast, Simple and Flexible Data Transfer
● Intuitive Onboard Software - Survey Star
- AVAILABILITY: AVAILABLE
- Inquire Now
| Range *1 | 5000m |
|---|---|
| Accuracy | ±(2+2ppmxD)mm |
| Measure Interval | Fine: 0.3s, Tracking: 0.1s |
| Range *2 | 1000/1500/2000m Optional |
| Accuracy | ±(3+2ppmxD)mm |
| Measure Interval | 0.3-3s |
| Accuracy | 2” |
| Measure Method (HZ/V) | Absolute Continuous, Diametrical |
| Diameter of Encoder Disk | 79mm |
| Display Resolution | 0.1” |
| Compensation | Liquid, Dual Axis Compensation |
| Compensator Setting Accuracy | 1” |
| Compensator Range | ±4' |
| Image | Erect |
| Tube Length | 154mm |
| Effective Aperture | 45mm (EDM:50mm) |
| Magnification | 30x |
| Resolving Power | 3” |
| Field of View | 1°30" |
| Focusing Range | 1.2m |
| Reticle | Illuminated, 4 Brightness Level |
| Plate Vial | 30"/2mm |
| Circular Vial | 8'/2mm |
| Type | Laser Point, 4 Brightness Level |
| Accuracy | ±1.5mm at 1.5M Instrument Height |
| Wavelength | 630-670nm |
| Laser Class | Class 2 /IEC60825-1 |
| Laser Power | <0.4mW |
| Image | Erect |
| Magnification | 3x |
| Focusing Range | 0.5m~∞ |
| Field of View | 5° |
| Operating System | Android 11.0 |
| Processor | MT6762 |
| Internal Memory | RAM: 4GB; ROM: 64GB |
| Interfaces | - Micro SIM - USB Type C (OTG) - TF Card |
| Network | 3G 2100/900 CDMA BC0 TDSCDMA A/F 4G LTE band1/3/7/38/39/40/41 |
| Bluetooth | Bluetooth 4.0 |
| WLAN | Dual-Band Single Stream 802.11 a/b/g/n RF for Data Link |
| Microphone / Speaker | Available |
| Type | 5.5 Inch, TFT LCD Screen, 720*1280 |
| Type | Lithium-Ion, 7.4V |
| Operating Time | 8 Hours |
| Size | 350mm*170mm*217mm |
| Weight | 5.7kgs |
| Temperature Range (Operation) | -20°C ～ 50°C |
| Protection | IP55 |
| N1 Brochure | Download |
|---|
