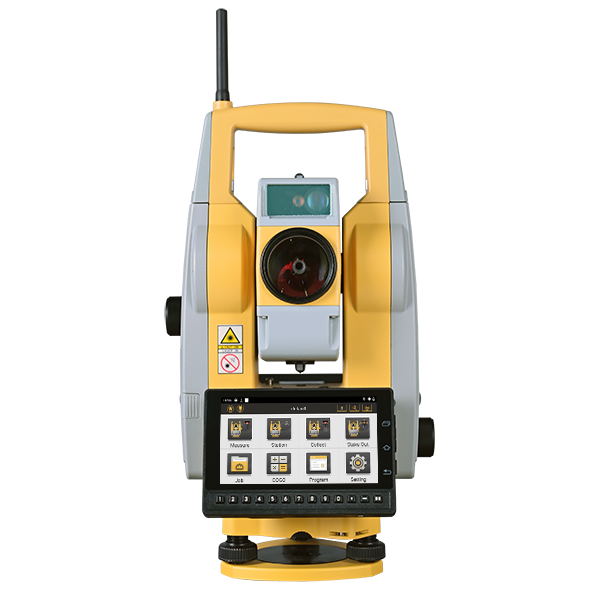

NS30
• One Person Survey & Monitoring
• 0.5" -1”Angle Accuracy Optional
• 1200m Apr, 300m Prism Search
• Lockntrack Function
• Convenient Numeric Keyboard
• Next Generation Survstar
- AVAILABILITY: AVAILABLE
- Inquire Now
| Accuracy | 0.5″-1″ |
|---|---|
| Reading System | Absolute, continuous four-quadrant |
| Display Resolution | 0.1″/1″ |
| Angle Units | DEG 360°/GON 400/MIL 6.400 |
| Magnification/ Field of view | 30x/1°30′ |
| Tube Length | 154mm |
| Minimum focus distance | 1.2m |
| Reticle | 5 brightness levels adjustable |
| Objective aperture | 45 mm (EDM: 50 mm) |
| Pointer | Red laser dot |
| Type | Dual axis, liquid photoelectric sensor |
| Compensation range/ accuracy | ±4' |
| Standard prism mode | 3500m |
| Reflectorless | 1000m (for 1" version), 800m (for 2" version) |
| Standard prism mode | ±1 mm+1 ppm |
| Reflectorless | D<500 m: ±2 mm + 2ppm D>500 m: +5 mm + 2ppm |
| Standard prism mode (Tracking/Precise) | 0.1 /0.3 sec |
| Reflectorless | 0.3-3 sec |
| Distance Unit | m/US ft/INT ft |
| Display Resolution | 1mm |
| Technology | DC Servo Motor |
| Max rotation speed | 60°/sec |
| Rotation time F1/F2 | 2.9 sec |
| Centering range | 3-1200m |
| Time | 3-5sec |
| Search range | 3-600m |
| AIM accuracy | ±1 mm @ 100 m |
| Search range | 3-300m |
| Search time | Typically 90°: 3.5 s |
| Angle | H: 360° V: ±18° |
| Lock range | 3-600m |
| Laser Type | Red laser dot, 635 nm |
| Accuracy | ±1.5 mm at 1.5 m |
| Plate level | 30“/2 mm |
| Circular level | 8’ |
| Operating Temperature | 30℃ to +50℃(-22℉ to 122℉) |
| Storage Temperature | -40℃ to +70℃(-40℉ to 158℉) |
| Waterproof/Dustproof | IP55 |
| Humidity | 95% non-condensing |
| Dimensions | 217 x 198 x378 mm |
| Weight (battery and tribrach inclusive) | 7 kg |
| Battery Voltage/Capacity/Type | Li-ion rechargeable battery, 5400mAh |
| Operating time | Up to 6 hours |
| Battery charger | 110/220V, charging time 4h |
| CPU | MT6762 |
| Display | 5.5-inch, TFT LCD screen, 720 x1280 px (2 displays) |
| Keyboard | 13 keys |
| OS | Android 11 |
| Memory | RAM: 4GB, ROM: 64GB |
| Interface | RS232 USB Type-C (OTG) Micro SIM TF Card |
| Data transfer | Bluetooth long-range 300 m WLAN USB-OTG Network 4G |
